6N137M-L, 6N137-L Photocoupler

LITE-ON

Description

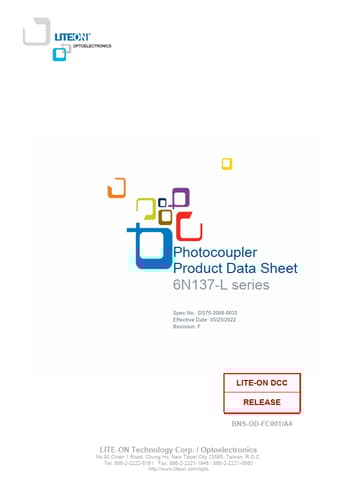

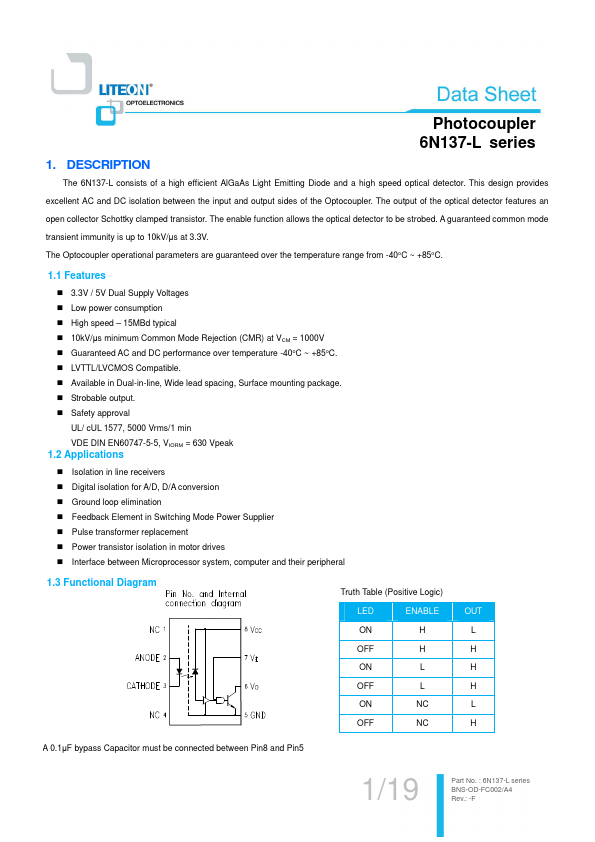

Photocoupler Product Data Sheet 6N137-L series Spec No.:DS70-2008-0035 Effective Date: 05/25/2022 Revision: F LITE-ON DCC RELEASE BNS-OD-FC001/A4 LIT.
The 6N137-L consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.

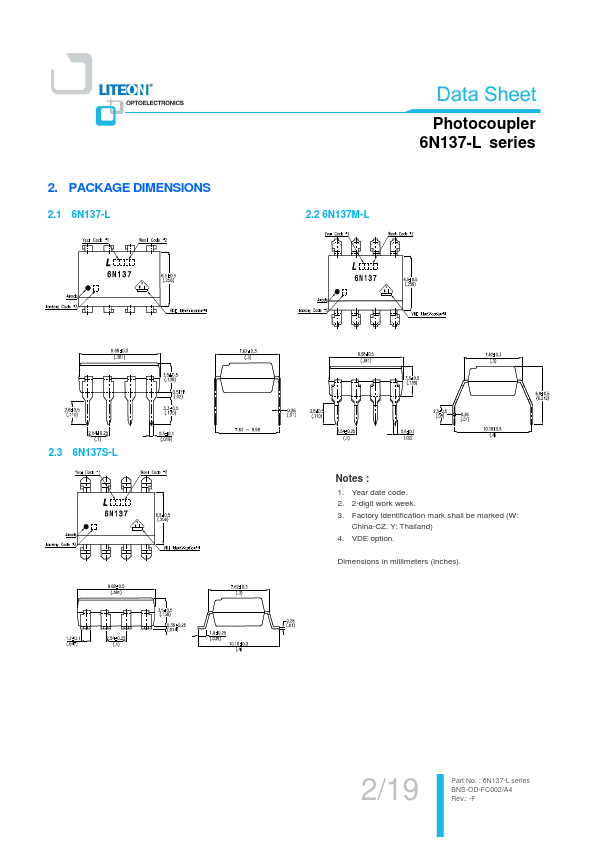

📥 Download Datasheet

6N137M-L Datasheet Preview — This datasheet PDF includes multiple part numbers: 6N137M-L, 6N137-L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 6N137M-L, 6N137-L
Manufacturer: LITE-ON
File Size: 638.95 KB
Datasheet: 6N137-L-LITEON.pdf
Description: Photocoupler
Note: This datasheet PDF includes multiple part numbers: 6N137M-L, 6N137-L.
Please refer to the document for exact specifications by model.

Features

* an open collector Schottky clamped transistor. The enable function allows the optical detector to be strobed. A guaranteed common mode transient immunity is up to 10kV/μs at 3.3V. The Optocoupler operational parameters are guaranteed over the temperature range from -40oC ~ +85oC. 1.1 Features

Applications

* Isolation in line receivers
* Digital isolation for A/D, D/A conversion
* Ground loop elimination
* Feedback Element in Switching Mode Power Supplier
* Pulse transformer replacement
* Power transistor isolation in motor drives
* Interface between Microprocessor system,
