BAV74, BAV74-LITE - SURFACE MOUNT FAST SWITCHING DIODE

BAV74 Description

SURFACE MOUNT FAST SWITCHING DIODE BAV74 REVERSE VOLTAGE * 70 Volts FORWARD CURRENT * 0.2 Ampere .

BAV74 Features

* Fast switching speed
* Ideally suited for automatic insertion

BAV74 Applications

* MECHANICAL DATA
* Case: SOT-23 Plastic
* Case material: “Green” molding compound, UL flammability classification 94V-0, (No Br. Sb. CI)
* Moisture sensitivity: Level 1 per J-STD-020D
* Lead free in RoHS 2002/95/EC compliant SOT-23 SOT-23 Dim. Min. Max. A 0.90 1.15 A1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAV74, BAV74-LITE. Please refer to the document for exact specifications by model.

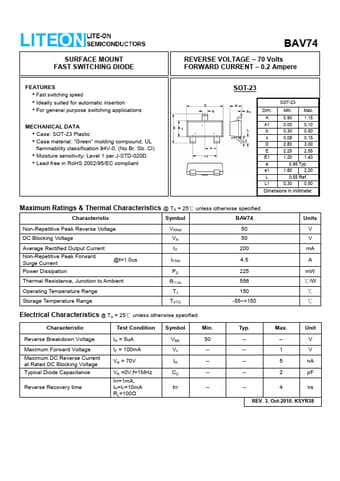

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAV74, BAV74-LITE
Manufacturer
LITE-ON
File Size
139.29 KB
Datasheet
BAV74-LITE-ON.pdf
Description
SURFACE MOUNT FAST SWITCHING DIODE
Note
This datasheet PDF includes multiple part numbers: BAV74, BAV74-LITE.
Please refer to the document for exact specifications by model.
