CNY17-1M-V, CNY17-1-V Photocoupler

LITE-ON

Description

Photocouplers CNY17-1-V thru CNY17-4-V SERIES 1..
1. Current transfer ratio (CTR : MIN. High collector-emitter voltage VCEO = 70V. High input-out.

📥 Download Datasheet

CNY17-1M-V Datasheet Preview — This datasheet PDF includes multiple part numbers: CNY17-1M-V, CNY17-1-V. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CNY17-1M-V, CNY17-1-V
Manufacturer: LITE-ON
File Size: 393.33 KB
Datasheet: CNY17-1-V-LITEON.pdf
Description: Photocoupler
Note: This datasheet PDF includes multiple part numbers: CNY17-1M-V, CNY17-1-V.
Please refer to the document for exact specifications by model.

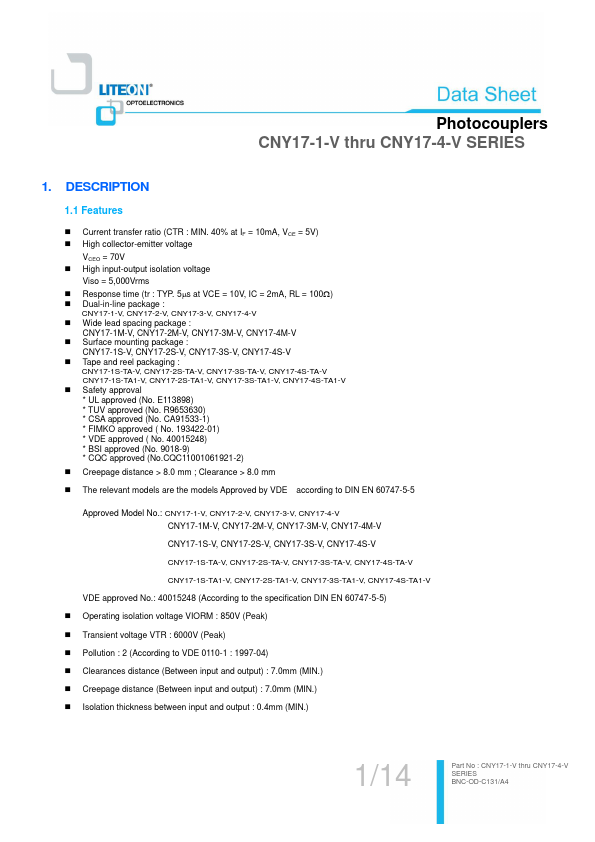

Features

* Current transfer ratio (CTR : MIN. 40% at IF = 10mA, VCE = 5V)
* High collector-emitter voltage VCEO = 70V
* High input-output isolation voltage Viso = 5,000Vrms
* Response time (tr : TYP. 5s at VCE = 10V, IC = 2mA, RL = 100)
* Dual-in-line package : CNY17-1-V, CNY17-2-V, CNY

Applications

* Power Supply regulators
* Digital logic inputs
* Microprocessor inputs
* Appliance Sensor Systems

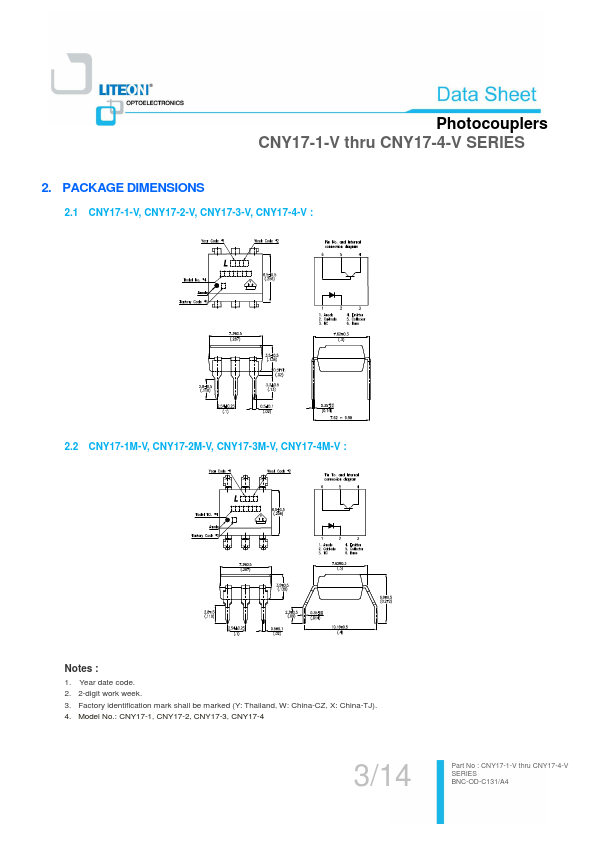

* Industrial Controls 2/14 Part No : CNY17-1-V thru CNY17-4-V SERIES BNC-OD-C131/A4 Photocouplers CNY17-1-V thru CNY17-4-V SERIES 2. PACKAGE DIMENSIONS 2.1 CNY17-1-V, CNY17-2-V,
