FS2A, FS2A-LITE SURFACE MOUNT SUPER FAST RECTIFIERS

FS2A Description

LITE-ON SEMICONDUCTOR SURFACE MOUNT SUPER FAST RECTIFIERS FS2A thru FS2J REVERSE VOLTAGE - 50 to 600 Volts FORWARD CURRENT - 2.0 Amperes .

FS2A Applications

* Low forward voltage drop and high current capability Low reverse leakage current Plastic material has UL flammability classification 94V-0 MECHANICAL DATA Case : Molded plastic Polarity : Color band denotes cathode Weight : 0.003 ounces, 0.093 grams SMB SMB A DIM. MIN. MAX. A 4.06 4.57 B 3.30 3.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FS2A, FS2A-LITE. Please refer to the document for exact specifications by model.

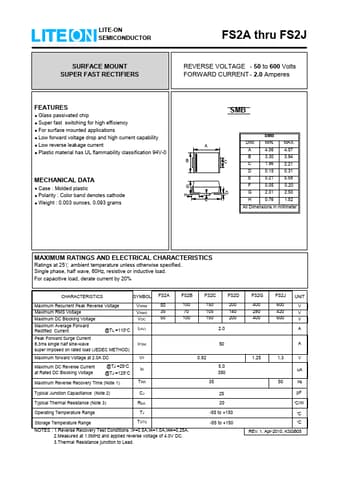

datasheet Preview Page 2

Datasheet Details

Part number
FS2A, FS2A-LITE
Manufacturer
LITE-ON
File Size
68.29 KB
Datasheet
FS2A-LITE-ON.pdf
Description
SURFACE MOUNT SUPER FAST RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: FS2A, FS2A-LITE.
Please refer to the document for exact specifications by model.
