* Rating to 1000V PRV High efficiency Glass passivated chip junction Electrically isolated metal case for maximum heat dissipation The plastic material has UL flammability classification 94V-0 UL Recognition File # E95060 MECHANICAL DATA Case : Molded plastic with Heatsink internally mounted in the br
GBPC25005W Datasheet (81.31 KB)
GBPC25005W
LITE-ON
81.31 KB
Glass passivated bridge rectifiers.
LITE-ON SEMICONDUCTOR

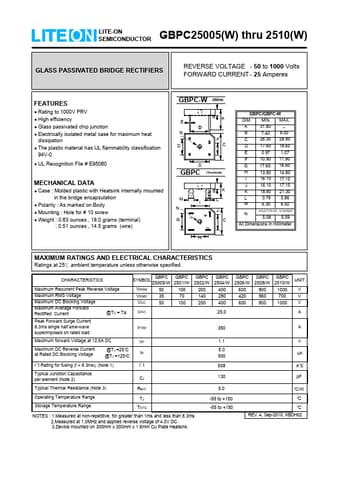

GBPC25005(W) thru 2510(W)
GLASS PASSIVATED BRIDGE RECTIFIERS
REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 25 Amperes
.
