GBU8005 - GLASS PASSIVATED BRIDGE RECTIFIERS

This page provides the datasheet information for the GBU8005, a member of the GBU8005-LITE GLASS PASSIVATED BRIDGE RECTIFIERS family.

Features

  • Rating to 1000V PRV Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique The plastic material has UL flammability classification 94V-0 UL Recognition File # E95060.

📥 Download Datasheet

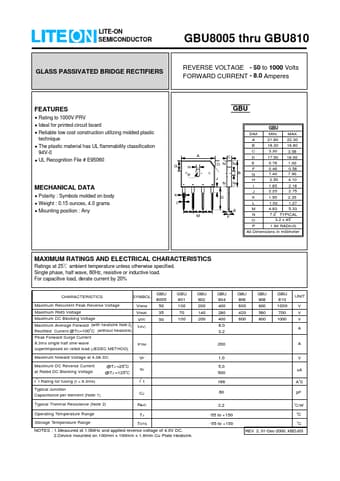

Datasheet preview – GBU8005

Datasheet Details

Part number GBU8005
Manufacturer LITEON
File Size 50.28 KB
Description GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet download datasheet GBU8005 Datasheet
Additional preview pages of the GBU8005 datasheet.

📁 Similar Datasheet

  • GBU8005 - Glass Passivated Bridge Rectifier (Eris)
  • GBU8005 - 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
  • GBU8005 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (Kingtronics)
  • GBU8005 - Bridge Rectifier (First Silicon)
  • GBU8005 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)
  • GBU8005 - Bridge Rectifier (Yangzhou Yangjie)
  • GBU8005 - GLASS PASSIVATED BRIDGE RECTIFIERS (HY ELECTRONIC)
  • GBU8005 - Silicon Bridge Rectifiers (GME)
  • GBU8005 - 8.0A Single-Phase Bridge Rectifier (SEP ELECTRONIC)
  • GBU8005 - 8.0Amp Glass Passivited Bridge Rectifiers (SeCoS)
Other Datasheets by LITE-ON
  • GBU801 - GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU802 - GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU804 - GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU806 - GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU808 - GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU810 - GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU10005 - GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU1001 - GLASS PASSIVATED BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text
LITE-ON SEMICONDUCTOR GBU8005 thru GBU810 GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 8.0 Amperes FEATURES Rating to 1000V PRV Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique The plastic material has UL flammability classification 94V-0 UL Recognition File # E95060 MECHANICAL DATA Polarity : Symbols molded on body Weight : 0.15 ounces, 4.0 grams Mounting position : Any GBU A GH P -~ ~ K L M C ON N J +N IB N D E F GBU DIM. MIN. MAX. A 21.80 22.30 B 18.30 18.80 C 3.30 3.56 D 17.50 18.00 E 0.76 1.00 F 0.46 0.56 G 7.40 7.90 H 3.50 4.10 I 1.65 2.16 J 2.25 2.75 K 1.95 2.35 L 1.02 1.27 M 4.83 5.33 N 7.0 TYPICAL O 3.2 x 45 P 1.
