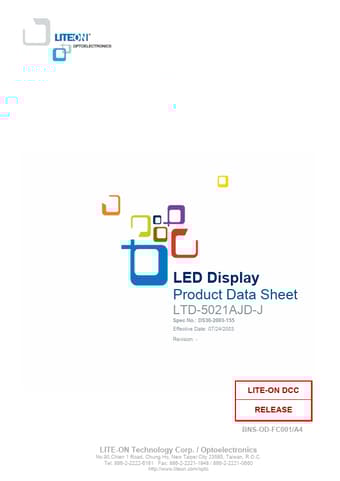

LTD-5021AJD-J Datasheet | LITEON

FEATURES ＊0.56 inch (14.22 mm ) DIGIT HEIGHT ＊EXCELLENT SEGMENT UNIFORMITY ＊LOW POWER REQUIREMENT ＊HIGH BRIGHTNESS AND HIGH CONTRAST ＊WIDE VIEWING ANGLE ＊SOLID STATE RELIABILITY ＊BINNED FOR LUMINOUS INTENSITY DESCRIPTION The LTD-5021AJD-J is a 0.56 inch (14.22 mm) digit height dual-digit display. This device uses Al In Ga P HYPER RED chips (Al In Ga P epi on Ga As substrate). The display has light gray face and white segments. DEVICE PART NO. Al In Ga P HYPER RED DESCRIPTION mon Anode Rt. Hand Decimal PART NO.: LTD-5021AJD-J BNS-OD-C131/A4 PAGE: 1 of 5 LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only PACKAGE DIMENSIONS NOTES: All dimensions are in millimeters. Tolerances are  0.25mm(0.01“) unless otherwise noted. INTERNAL CIRCUIT DIAGRAM PART NO.: LTD-5021AJD-J BNS-OD-C131/A4 PAGE: 2 of 5 LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only PIN CONNECTION No CONNECTION Cathode E (Digit 1) Cathode D (Digit 1) Cathode C (Digit 1) Cathode DP...
