LTD-5621AJG

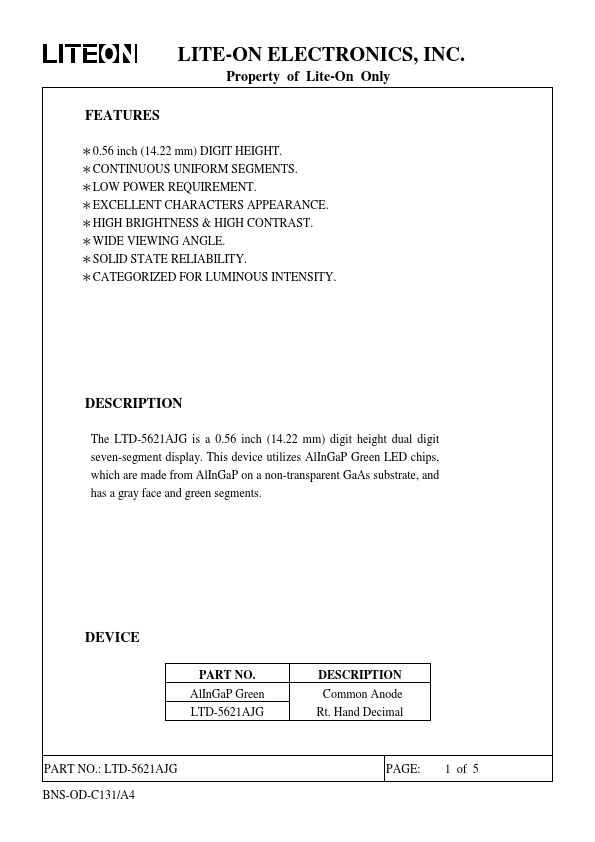

FEATURES
＊0.56 inch (14.22 mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY.
DESCRIPTION
The LTD-5621AJG is a 0.56 inch (14.22 mm) digit height dual digit seven-segment display. This device utilizes Al In Ga P Green LED chips, which are made from Al In Ga P on a non-transparent Ga As substrate, and has a gray face and green segments.
DEVICE
PART NO. Al In Ga P Green LTD-5621AJG
PART NO.: LTD-5621AJG BNS-OD-C131/A4
DESCRIPTION mon Anode Rt. Hand Decimal
PAGE: 1 of 5
LITE-ON ELECTRONICS, INC.
Property of Lite-On Only

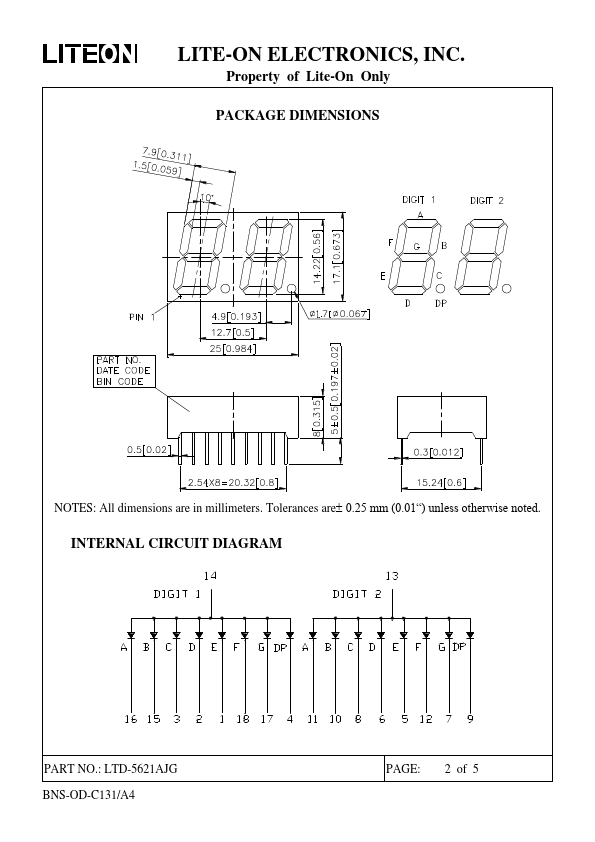

PACKAGE DIMENSIONS
NOTES: All dimensions are in millimeters. Tolerances are 0.25 mm (0.01“) unless otherwise noted.
INTERNAL CIRCUIT DIAGRAM
PART NO.: LTD-5621AJG BNS-OD-C131/A4
PAGE: 2 of 5
LITE-ON ELECTRONICS, INC.
Property of Lite-On Only
PIN CONNECTION
No.
CONNECTION
CATHODE E (DIGIT...
