LTP-1457AE, LTP-1457AE-LITE Datasheet - LITE-ON

LTP-1457AE - LED Display

The LTP-1457AE is a 1.2 inch (30.42 mm) matrix height 5×7 dot matrix display. This device utilizes Red Orange LED chips, which are made from GaAsP on GaP substrate, and has a gray face and white dot color. DEVICE PART NO. Red Orange LTP-1457AE DESCRIPTION ANODE COLUMN CATHODE ROW PART NO.: LTP-1.

LTP-1457AE-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: LTP-1457AE, LTP-1457AE-LITE. Please refer to the document for exact specifications by model.

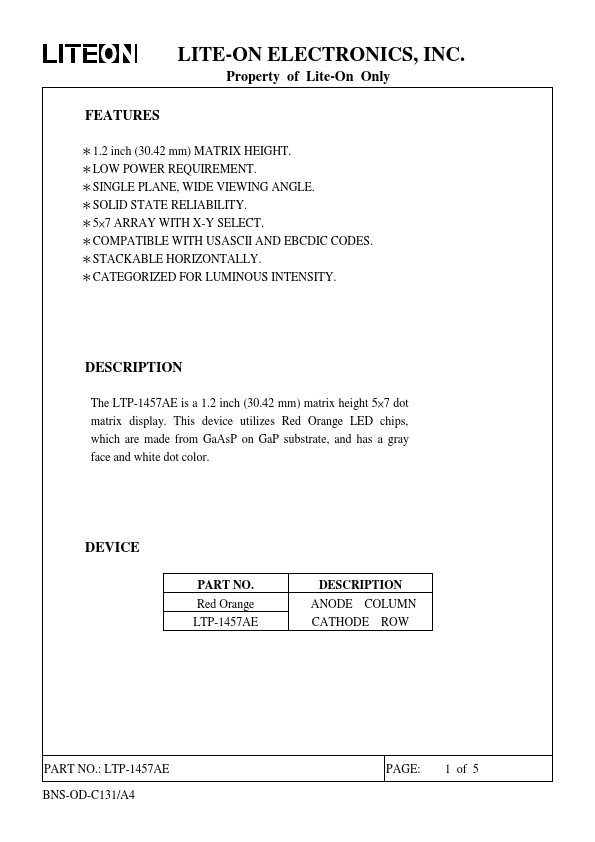

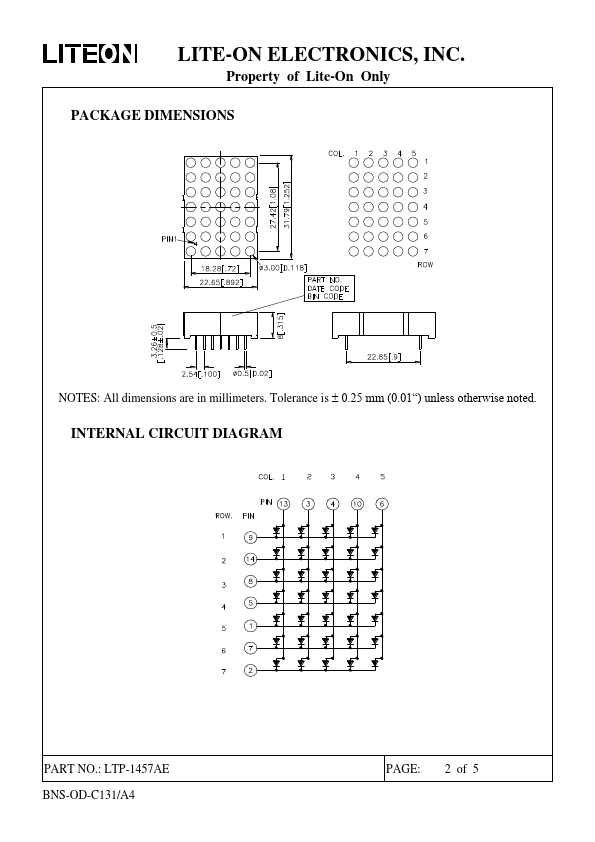

LTP-1457AE Datasheet Preview Page 2 LTP-1457AE Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-1457AE, LTP-1457AE-LITE

Manufacturer:

LITE-ON

File Size:

366.88 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTP-1457AE, LTP-1457AE-LITE.
Please refer to the document for exact specifications by model.
