LTP-1557AE, LTP-1557AE-LITE Datasheet - LITE-ON

LTP-1557AE LED Display

The LTP-1557AE is a 1.2 inch (30.42 mm) matrix height 5x7 dot matrix display. This device utilizes red orange LED chips, which are made from GaAsP on a GaP substrate, with a gray face and white dot color. DEVICE PART NO. Red Orange LTP-1557AE DESCRIPTION Cathode Column Anode Row PART NO.: LTP-15.

LTP-1557AE Features

* 1.2 inch (30.42 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x7 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIP

LTP-1557AE-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: LTP-1557AE, LTP-1557AE-LITE. Please refer to the document for exact specifications by model.

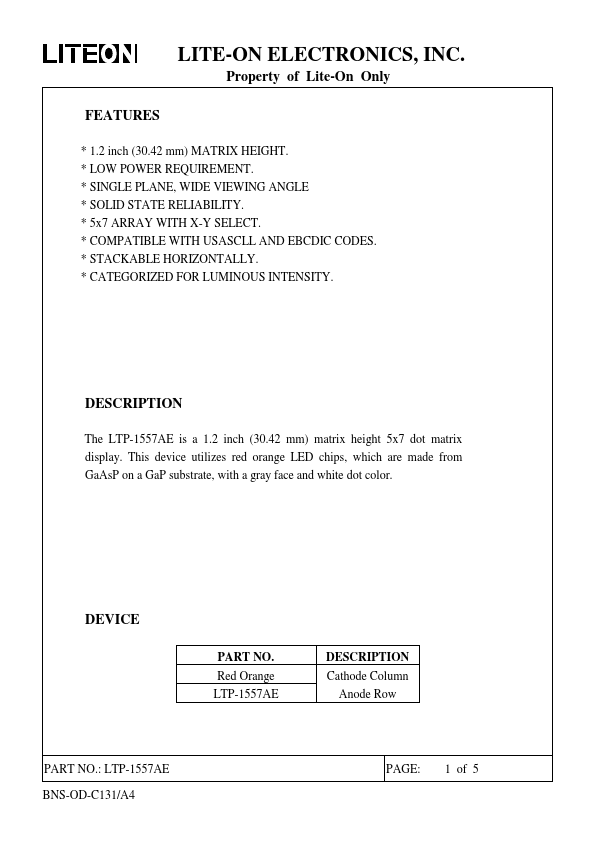

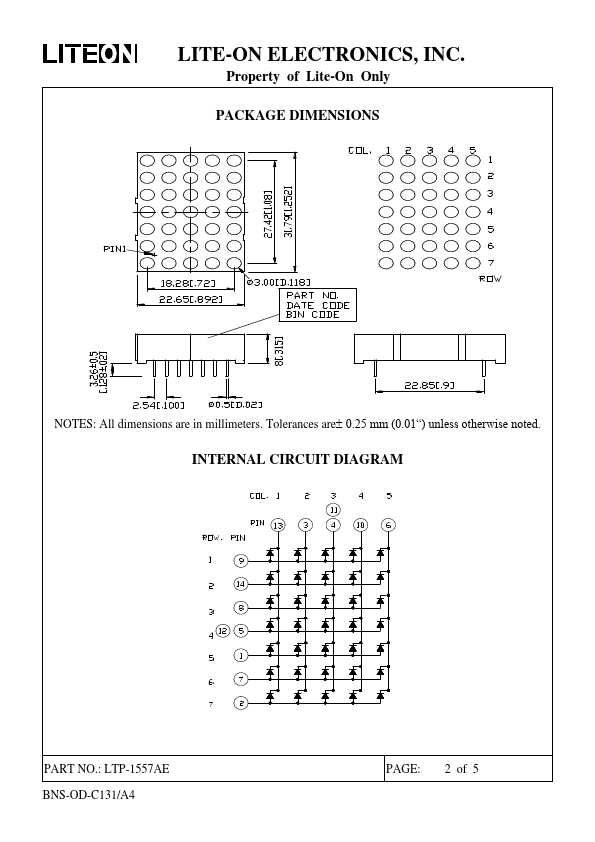

LTP-1557AE Datasheet Preview Page 2 LTP-1557AE Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-1557AE, LTP-1557AE-LITE

Manufacturer:

LITE-ON

File Size:

427.67 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTP-1557AE, LTP-1557AE-LITE.
Please refer to the document for exact specifications by model.
