LTP-587JD Datasheet - LITE-ON

LTP-587JD LED Display

The LTP-587JD is a 0.5 inch (12.7 mm) height 16-segment single digit alphanumeric display. This device utilizes AlInGaP hyper red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a black face and white segments. DEVICE PART NO. AlInGaP HYPER RED LTP-587JD DESCRI.

LTP-587JD Datasheet (362.41 KB)

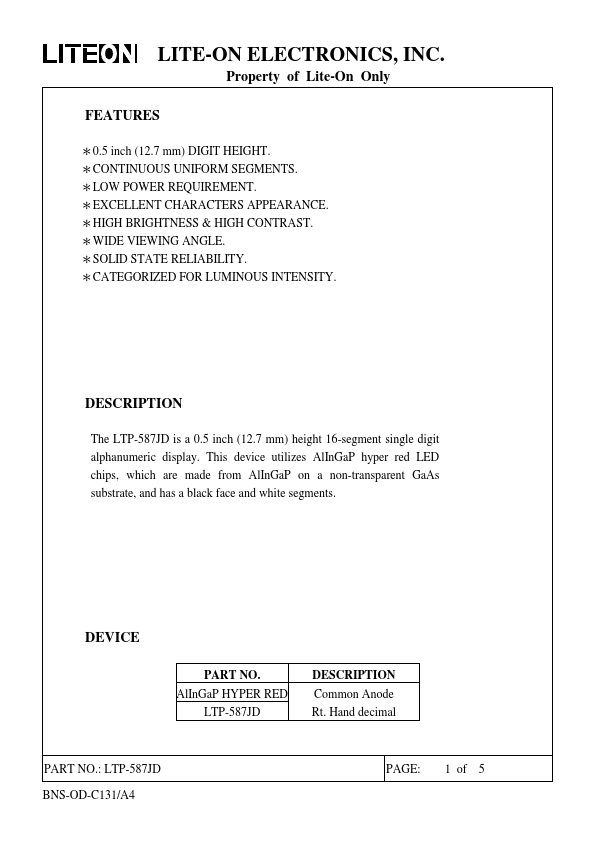

Preview of LTP-587JD PDF

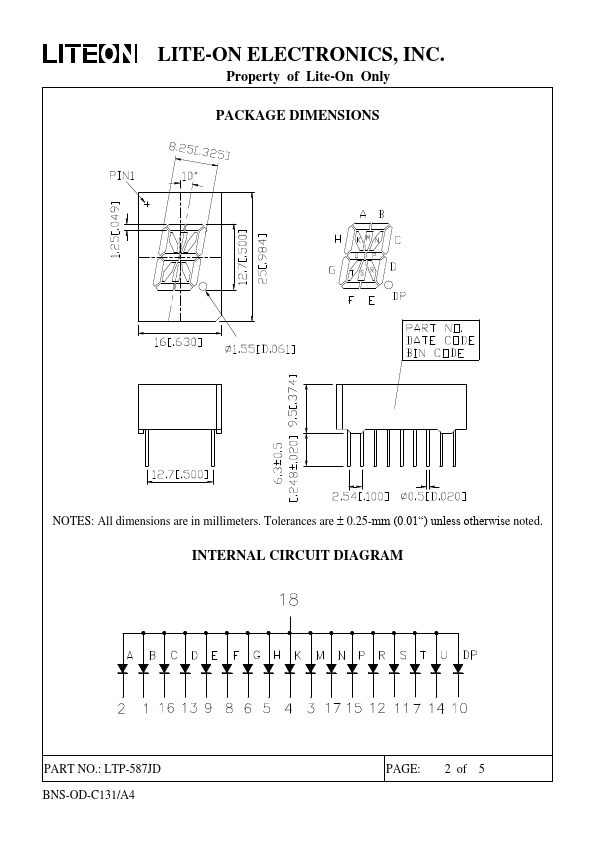

LTP-587JD Datasheet Preview Page 2 LTP-587JD Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-587JD

Manufacturer:

LITE-ON

File Size:

362.41 KB

Description:

Led display.
