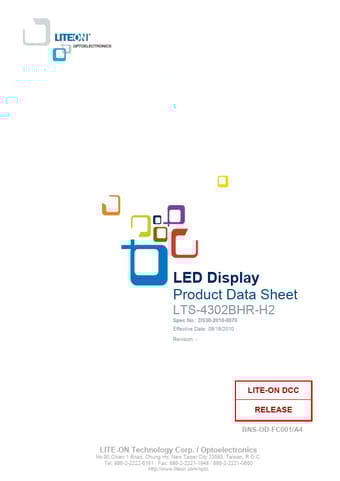

LTS-4302BHR-H2
Description
By
ORIGINAL
KITTISAK
(Refer to contour drawing Revision (-))
March 12/2010
Put wave soldering profile and reliability test KITTISAK B. item
May 18/2010
(Above data for PD and Customer tracking only)
- NPPR Received and Upload on OPNC
KITTISAK B.
July 29/2010
SPEC NO. : DATE : REV. NO. : PAGE NO. :
DS30-2010-0070 July 29/2010 0 OF 7
PART NO.: LTS-4302BHR-H2 BNS-OD-C131/A4
PAGE: 0 of 7
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
FEATURES
＊0.39 INCH ( 10.0mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY. ＊LEAD-FREE PACKAGE (ACCORDING TO ROHS).
DESCRIPTION
The LTS-4302BHR-H2 is a 0.39 inch (10.0mm) height digit display. This device uses HI-EFF. RED LED chips (Ga As P epi on Ga P substrate). And has a black face and red segments.
DEVICE
PART NO. HI-EFF. RED...
