LTS-5001AJD, LTS-5001AJD-LITE - LED Display

LTS-5001AJD Description

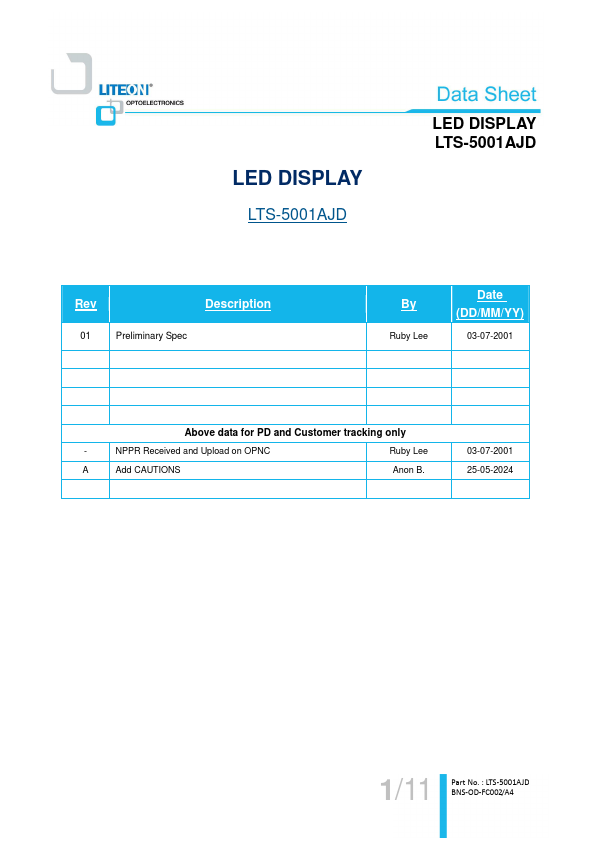

LED Display Product Data Sheet LTS-5001AJD Spec No.:DS30-2001-223 Effective Date: 10/16/2024 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON .
01 Preliminary Spec By Ruby Lee Date (DD/MM/YY) 03-07-2001 Above data for PD and Customer tracking only - NPPR Received and Upload on OPNC Rub.

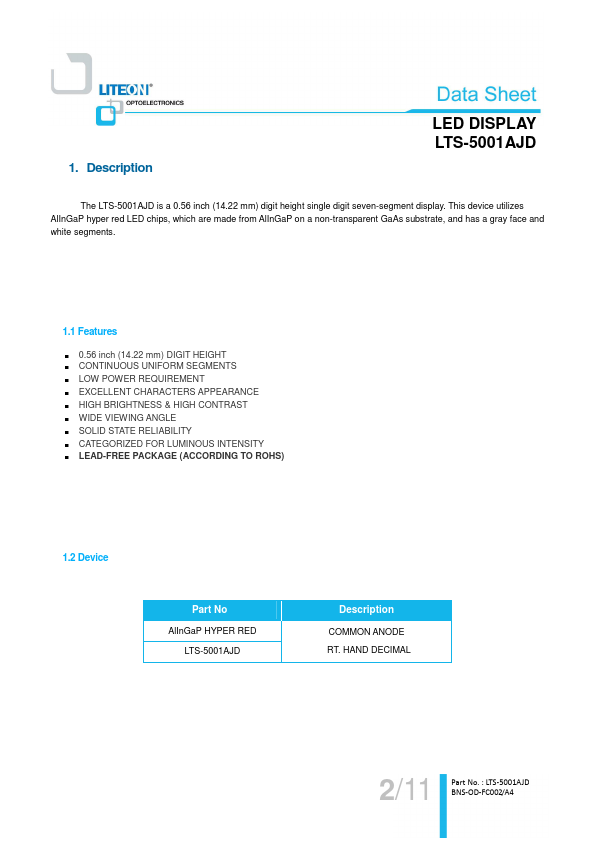

LTS-5001AJD Features

* 0.56 inch (14.22 mm) DIGIT HEIGHT
* CONTINUOUS UNIFORM SEGMENTS
* LOW POWER REQUIREMENT
* EXCELLENT CHARACTERS APPEARANCE
* HIGH BRIGHTNESS & HIGH CONTRAST
* WIDE VIEWING ANGLE
* SOLID STATE RELIABILITY
* CATEGORIZED FOR LUMINOUS INTENSITY
* LEAD-FREE PACKAGE (A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTS-5001AJD, LTS-5001AJD-LITE. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTS-5001AJD, LTS-5001AJD-LITE
Manufacturer
LITE-ON
File Size
404.42 KB
Datasheet
LTS-5001AJD-LITE-ON.pdf
Description
LED Display
Note
This datasheet PDF includes multiple part numbers: LTS-5001AJD, LTS-5001AJD-LITE.
Please refer to the document for exact specifications by model.
