LTS-546AJG, LTS-546AJG-LITE - LED Display

LTS-546AJG Description

LED Display Product Data Sheet LTS-546AJG Spec No.:DS30-2002-016 Effective Date: 10/05/2024 Revision: C LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON T.
By Date Above data for PD and Customer tracking only - NPPR Received and Upload on System Vicky Liao 02/21/2002 A Change to PB FREE TH Chen 0.

LTS-546AJG Features

* 0.52 inch (13.2 mm) DIGIT HEIGHT
* CONTINUOUS UNIFORM SEGMENTS
* LOW POWER REQUIREMENT
* EXCELLENT CHARACTERS APPEARANCE
* HIGH BRIGHTNESS & HIGH CONTRAST
* WIDE VIEWING ANGLE
* SOLID STATE RELIABILITY
* CATEGORIZED FOR LUMINOUS INTENSITY.
* LEAD-FREE PACKAGE(AC

LTS-546AJG Applications

* . Consult Liteon’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the display may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life suppor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTS-546AJG, LTS-546AJG-LITE. Please refer to the document for exact specifications by model.

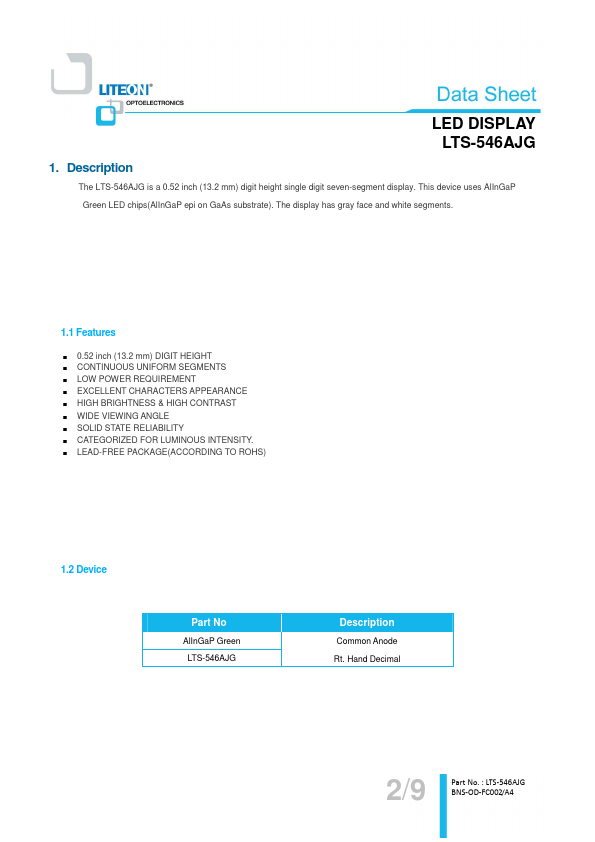

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTS-546AJG, LTS-546AJG-LITE
Manufacturer
LITE-ON
File Size
314.96 KB
Datasheet
LTS-546AJG-LITE-ON.pdf
Description
LED Display
Note
This datasheet PDF includes multiple part numbers: LTS-546AJG, LTS-546AJG-LITE.
Please refer to the document for exact specifications by model.
