LTSN-N213EGBW - SMD LED

Name: LTSN-N213EGBW
SKU: LTSN-N213EGBW-1592750

LITE-ON

The LTSN-N213EGBW by LITE-ON is a SMD LED. Below is the official datasheet preview.

Datasheet Details

Part number	LTSN-N213EGBW
Manufacturer	LITEON
File Size	398.47 KB
Description	SMD LED
Datasheet	LTSN-N213EGBW-LITEON.pdf

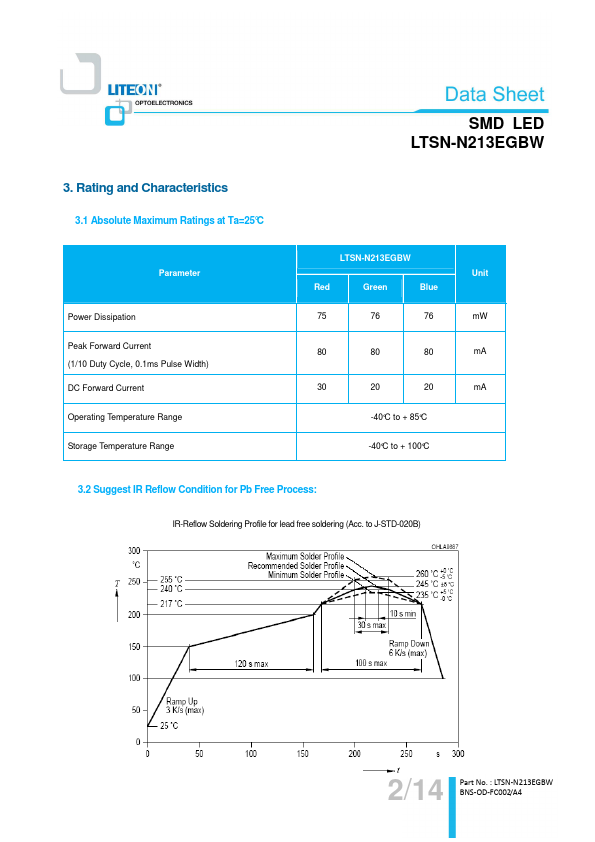

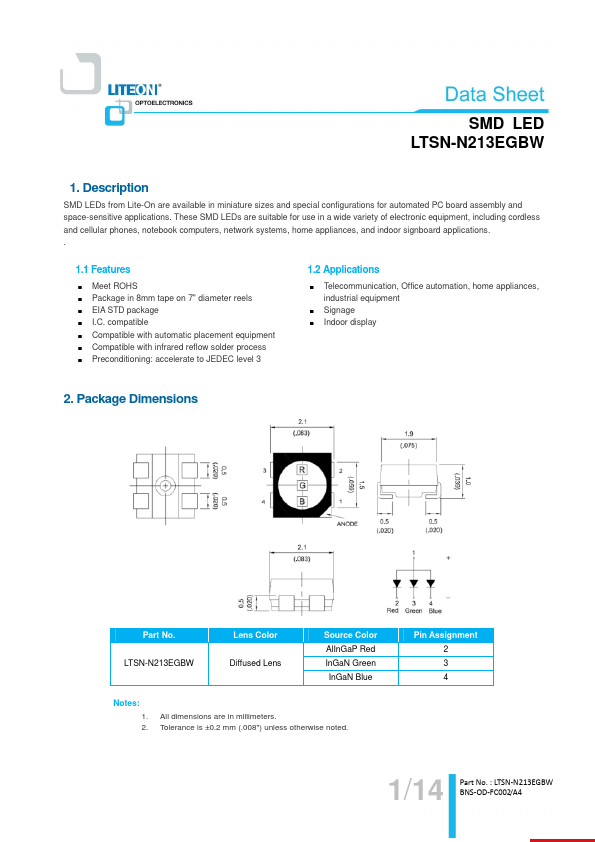

Additional preview pages of the LTSN-N213EGBW datasheet.

SMD LEDs from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

Meet ROHS Package in 8mm tape on 7" diameter reels EIA STD package I. C. compatible Compatible with automatic placement equipment Compatible with infrared reflow solder process Preconditioning: accelerate to JEDEC level 3 1.2.
