LTV-200 Photocoupler

LITE-ON

Description

Photocoupler Product Data Sheet LTV-200 Spec No.: DS70-2011-0108 Effective Date: 12/11/2014 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.

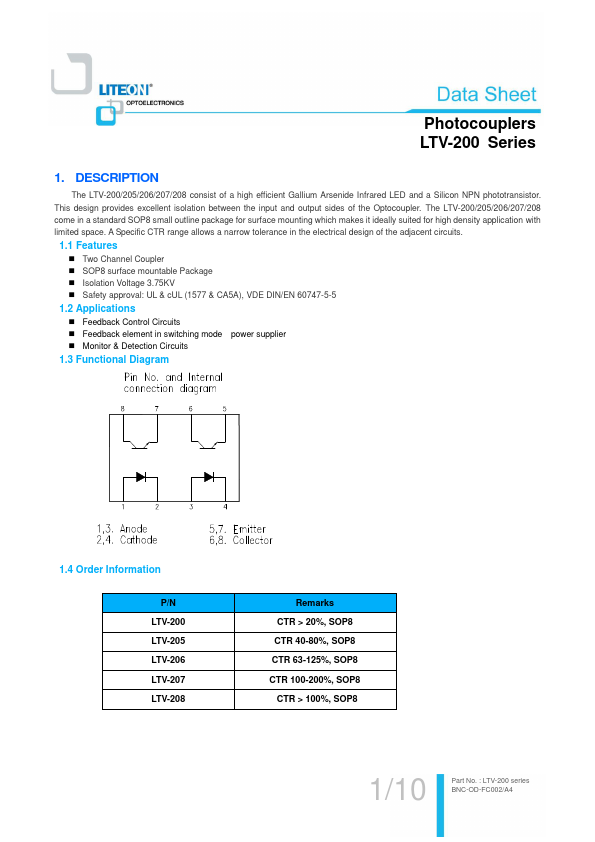

The LTV-200/205/206/207/208 consist of a high efficient Gallium Arsenide Infrared LED and a Silicon NPN phototransistor.

📥 Download Datasheet

LTV-200 Datasheet Preview — Preview of LTV-200 PDF

Datasheet Specifications

Part number: LTV-200
Manufacturer: LITE-ON
File Size: 384.58 KB
Datasheet: LTV-200-LITEON.pdf
Description: Photocoupler

Features

* Two Channel Coupler
* SOP8 surface mountable Package
* Isolation Voltage 3.75KV

Applications

* Feedback Control Circuits
* Feedback element in switching mode power supplier
* Monitor & Detection Circuits 1.3 Functional Diagram 1.4 Order Information P/N LTV-200 LTV-205 LTV-206 LTV-207 LTV-208 Remarks CTR > 20%, SOP8 CTR 40-80%, SOP8 CTR 63-125%, SOP8 CTR 100-200%, SOP8 CTR > 10
