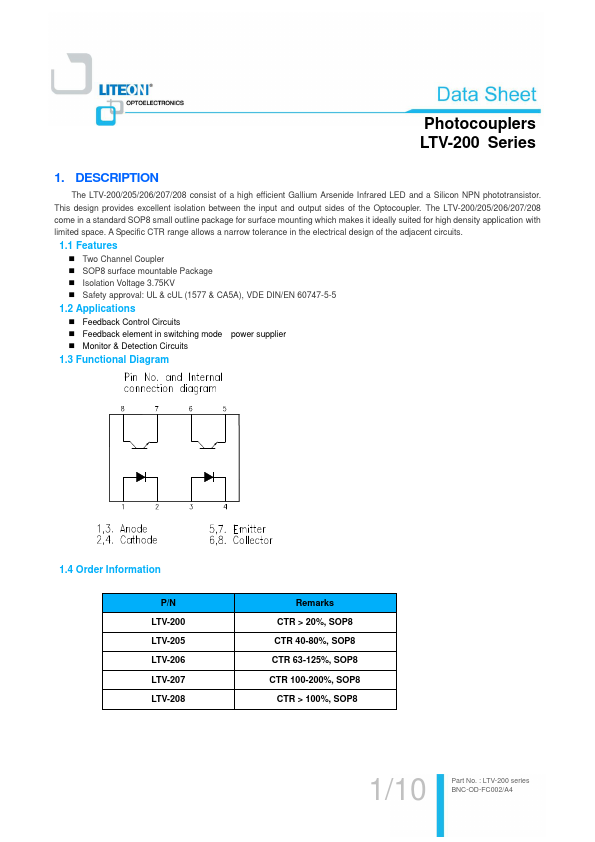

LTV-208
DESCRIPTION
The LTV-200/205/206/207/208 consist of a high efficient Gallium Arsenide Infrared LED and a Silicon NPN phototransistor. This design provides excellent isolation between the input and output sides of the Optocoupler. The LTV-200/205/206/207/208 e in a standard SOP8 small outline package for surface mounting which makes it ideally suited for high density application with limited space. A Specific CTR range allows a narrow tolerance in the electrical design of the adjacent circuits.
1.1 Features
- Two Channel Coupler
- SOP8 surface mountable Package
- Isolation Voltage 3.75KV
- Safety approval: UL & c UL (1577 & CA5A), VDE DIN/EN 60747-5-5
1.2 Applications
- Feedback Control Circuits
- Feedback element in switching mode power supplier
- Monitor & Detection Circuits
1.3 Functional Diagram
1.4 Order Information
P/N LTV-200 LTV-205 LTV-206 LTV-207 LTV-208
Remarks CTR > 20%, SOP8 CTR 40-80%, SOP8 CTR 63-125%, SOP8 CTR 100-200%, SOP8 CTR > 100%, SOP8
1/10
