LTV-214

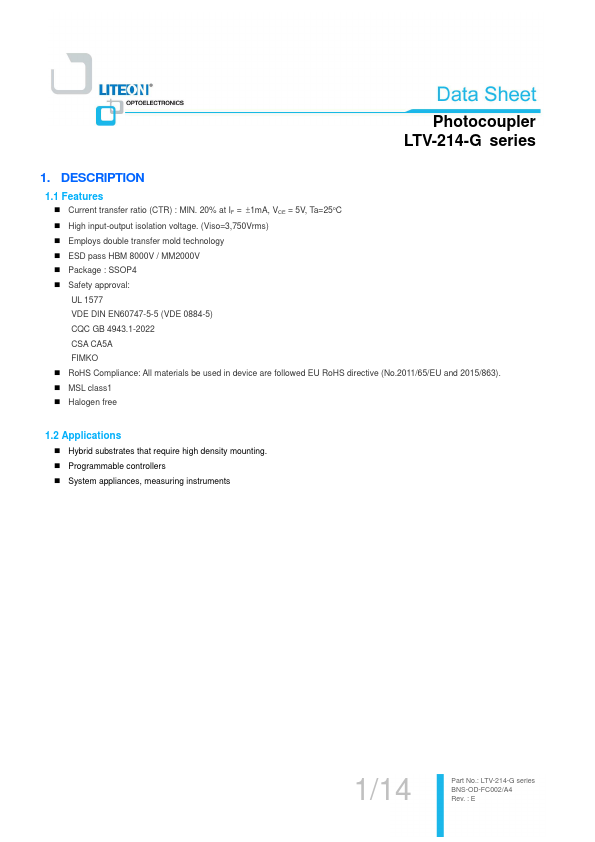

DESCRIPTION
1.1 Features
- Current transfer ratio (CTR) : MIN. 20% at IF = ±1m A, VCE = 5V, Ta=25o C
- High input-output isolation voltage. (Viso=3,750Vrms)
- Employs double transfer mold technology
- ESD pass HBM 8000V / MM2000V
- Package : SSOP4
- Safety approval:
UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) CQC GB 4943.1-2022 CSA CA5A FIMKO
- Ro HS pliance: All materials be used in device are followed EU Ro HS directive (No.2011/65/EU and 2015/863).
- MSL class1
- Halogen free
1.2 Applications
- Hybrid substrates that require high density mounting.
- Programmable controllers
- System appliances, measuring instruments
1/14
Part No.: LTV-214-G series BNS-OD-FC002/A4 Rev. : E

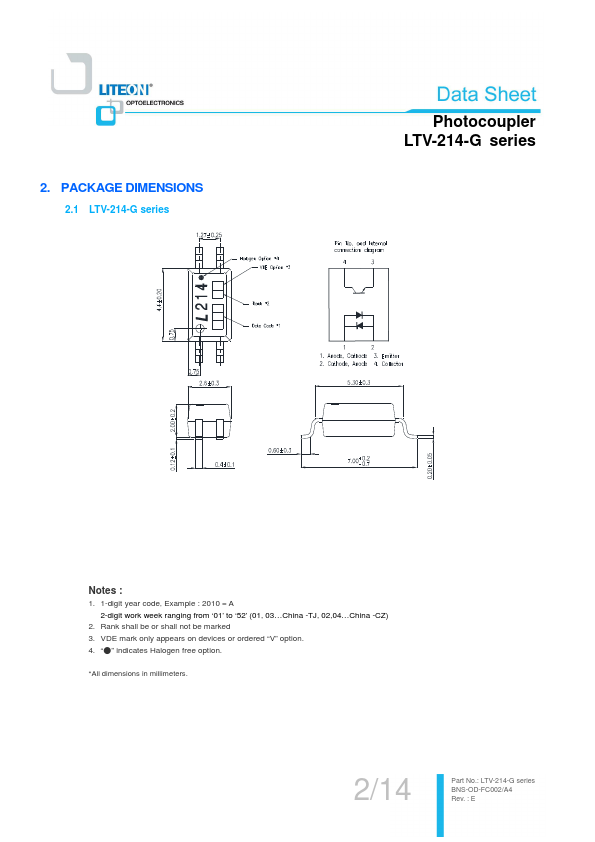

2. PACKAGE DIMENSIONS
2.1 LTV-214-G series
Photocoupler LTV-214-G series
Notes :
1. 1-digit year code, Example : 2010 = A 2-digit work week ranging from ‘01’ to ‘52’ (01, 03…China -TJ, 02,04…China -CZ)
2. Rank shall be or shall not be marked 3. VDE mark only appears on devices or ordered “V” option. 4. “- ” indicates...
