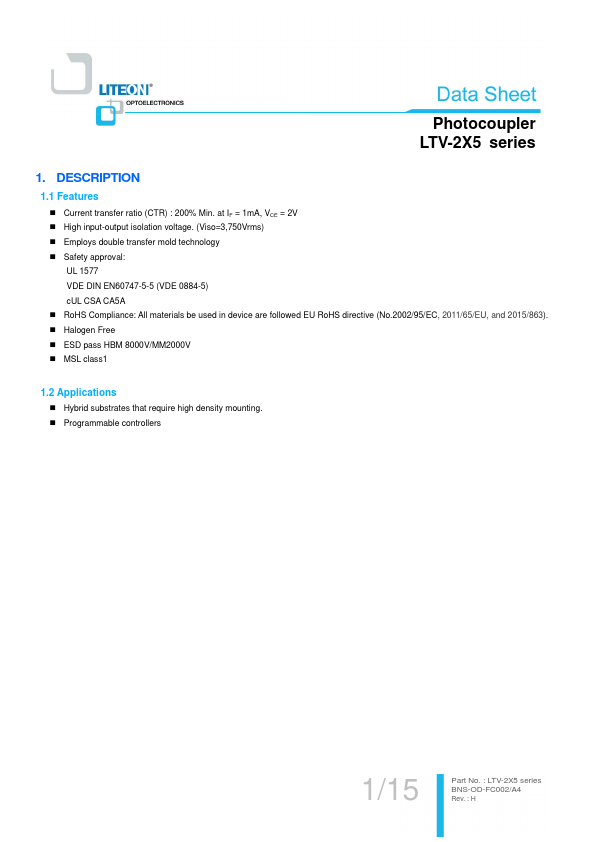

LTV-215
DESCRIPTION
1.1 Features
- Current transfer ratio (CTR) : 200% Min. at IF = 1m A, VCE = 2V
- High input-output isolation voltage. (Viso=3,750Vrms)
- Employs double transfer mold technology
- Safety approval:
UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) c UL CSA CA5A
- Ro HS pliance: All materials be used in device are followed EU Ro HS directive (No.2002/95/EC, 2011/65/EU, and 2015/863).
- Halogen Free
- ESD pass HBM 8000V/MM2000V
- MSL class1
1.2 Applications
- Hybrid substrates that require high density mounting.
- Programmable controllers
1/15
Part No. : LTV-2X5 series BNS-OD-FC002/A4
Rev. : H

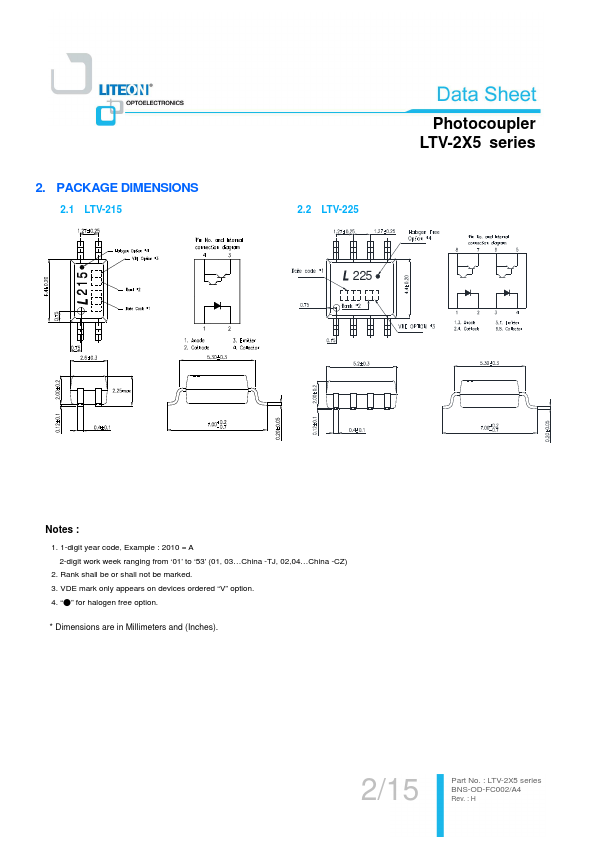

2. PACKAGE DIMENSIONS
2.1 LTV-215
Photocoupler LTV-2X5 series
2.2 LTV-225
Notes :
1. 1-digit year code, Example : 2010 = A 2-digit work week ranging from ‘01’ to ‘53’ (01, 03…China -TJ, 02,04…China -CZ)
2. Rank shall be or shall not be marked. 3. VDE mark only appears on devices ordered “V” option. 4. “- ” for halogen free option.
- Dimensions are in Millimeters and (Inches).
