LTV-245, LTV-215 - Photocoupler

LITE-ON

📥 Download Datasheet

LTV-245 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-245, LTV-215. Please refer to the document for exact specifications by model.

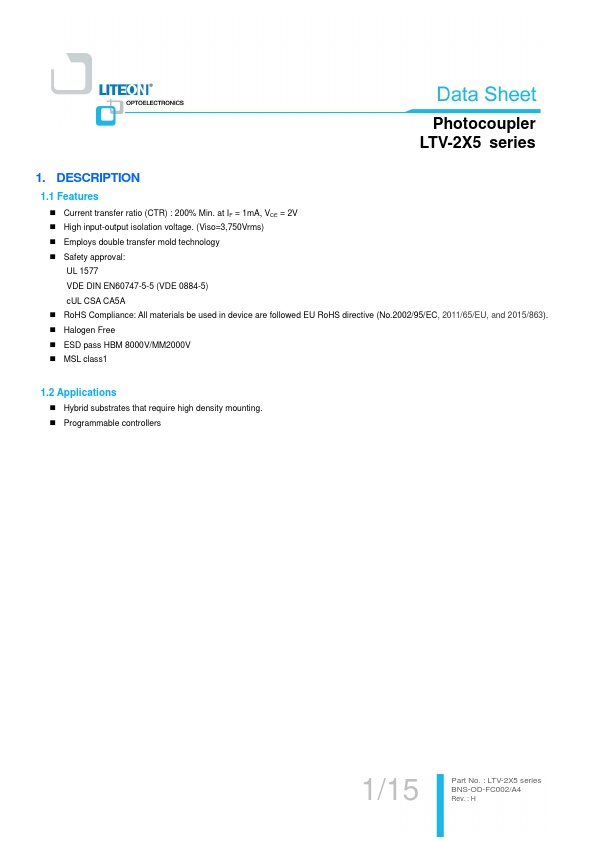

datasheet Preview Page 2

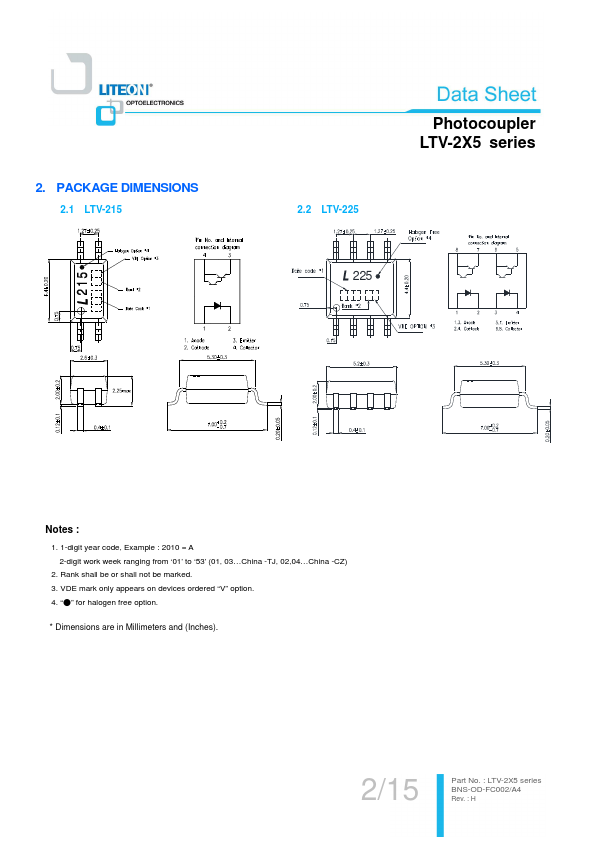

datasheet Preview Page 3

Datasheet Details

Part number	LTV-245, LTV-215
Manufacturer	LITEON ↗
File Size	438.44 KB
Description	Photocoupler
Datasheet	LTV-215-LITEON.pdf
Note	This datasheet PDF includes multiple part numbers: LTV-245, LTV-215. Please refer to the document for exact specifications by model.

LTV-245 Product details

Description

1.1

Features

Current transfer ratio (CTR) : 200% Min. at IF = 1mA, VCE = 2V.
High input-output isolation voltage. (Viso=3,750Vrms).
Employs double transfer mold technology.
Safety approval: UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) cUL CSA CA5A.
RoHS Compliance: All materials be used in device are followed EU RoHS directive (No.2002/95/EC, 2011/65/EU, and 2015/863).
Halogen Free.
ESD pass HBM 8000V/MM2000V.
MSL class1 1.2.
