LTV-3120M, LTV-3120 - Photocoupler

LITE-ON

LTV-3120M Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-3120M, LTV-3120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTV-3120M, LTV-3120
Manufacturer	LITEON ↗
File Size	468.69 KB
Description	Photocoupler
Datasheet	LTV-3120-LITEON.pdf
Note	This datasheet PDF includes multiple part numbers: LTV-3120M, LTV-3120. Please refer to the document for exact specifications by model.

LTV-3120M Product details

Description

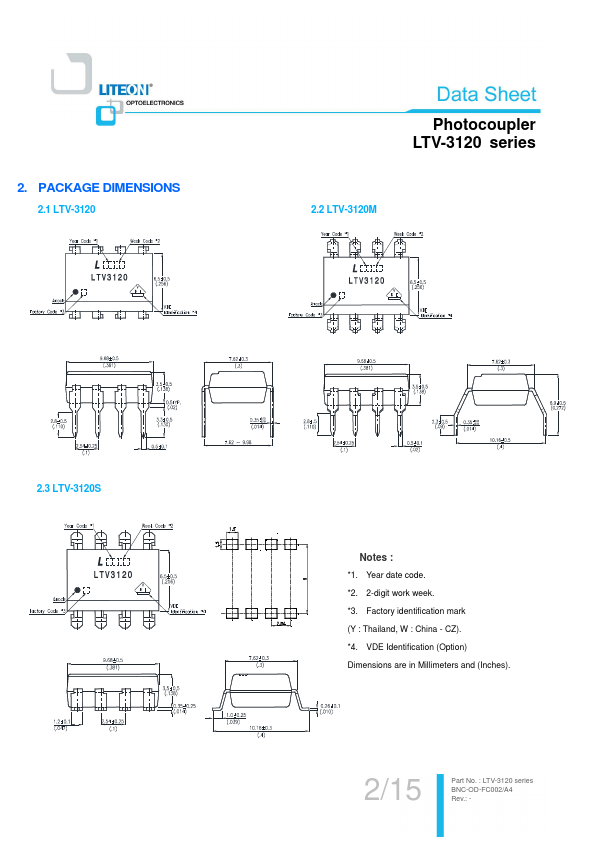

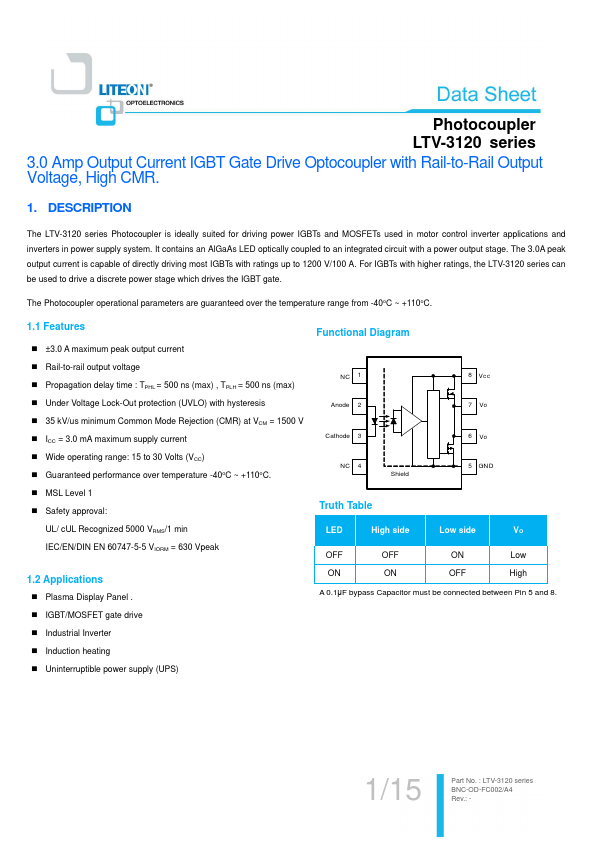

The LTV-3120 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system.

Features

±3.0 A maximum peak output current Functional Diagram.
Rail-to-rail output voltage.
Propagation delay time : TPHL = 500 ns (max) , TPLH = 500 ns (max) NC 1 8 Vcc.
Under Voltage Lock-Out protection (UVLO) with hysteresis.
35 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V.
ICC = 3.0 mA maximum supply current Anode 2 Cathode 3 7 Vo 6 Vo.
Wide operating range: 15 to 30 Volts (VCC).
Guaranteed performance over temperature -40oC ~ +110oC. NC.
