LTV-3120S, LTV-3120 Photocoupler

LITE-ON

Description

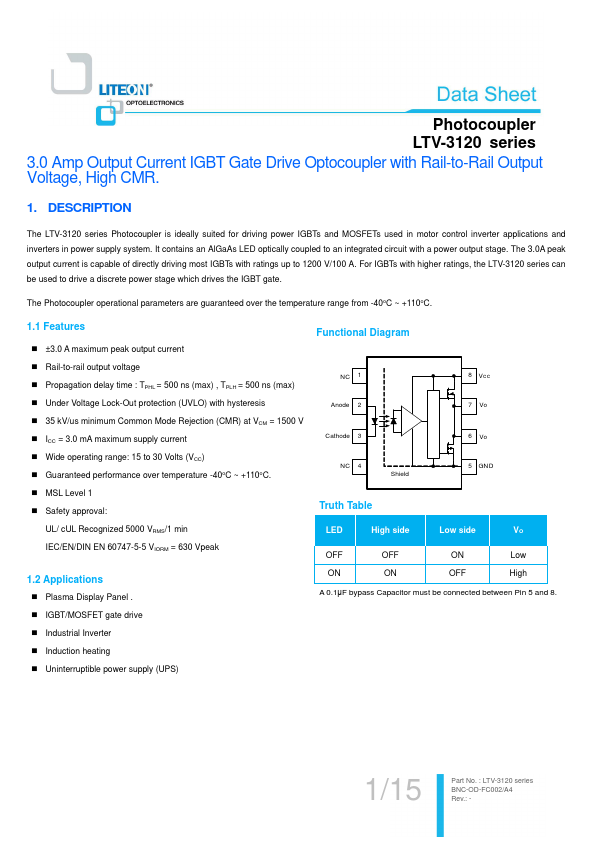

Photocoupler Product Data Sheet LTV-3120 series Spec No.:DS70-2012-0008 Effective Date: 02/26/2021 Revision: H LITE-ON DCC RELEASE BNS-OD-FC001/A4 LI.
The LTV-3120 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in p.

📥 Download Datasheet

LTV-3120S Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-3120S, LTV-3120. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTV-3120S, LTV-3120
Manufacturer: LITE-ON
File Size: 468.69 KB
Datasheet: LTV-3120-LITEON.pdf
Description: Photocoupler
Note: This datasheet PDF includes multiple part numbers: LTV-3120S, LTV-3120.
Please refer to the document for exact specifications by model.

Features

* ±3.0 A maximum peak output current Functional Diagram
* Rail-to-rail output voltage
* Propagation delay time : TPHL = 500 ns (max) , TPLH = 500 ns (max) NC 1 8 Vcc
* Under Voltage Lock-Out protection (UVLO) with hysteresis
* 35 kV/us minimum Common Mode Rejection (CMR) at

Applications

* and inverters in power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The 3.0A peak output current is capable of directly driving most IGBTs with ratings up to 1200 V/100 A. For IGBTs with higher ratings, the LTV-3120 series can be used
