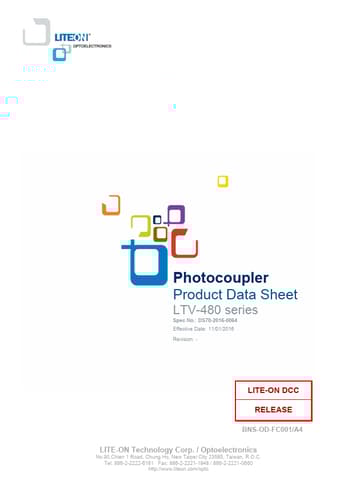

LTV-480W-TA1
Description
The LTV-480 series fast speed photocoupler contains a Al Ga As LED and photo detector with built-in Schmitt trigger to provide logic-patible waveforms, eliminating the need for additional wave shaping. The totem pole output eliminates the need for a pull up resistor and allows for direct drive Intelligent Power Module or gate drive. Minimized propagation delay difference between devices makes these optocouplers excellent solutions for improving inverter efficiency through reduced switching dead time.
Features
- Positive output type (totem pole output)
- Truth Table Guaranteed: VCC from 4.5V to 30V
- Performance Specified for mon IPM Applications Over
Industrial Temperature Range.
- Short Maximum Propagation Delays
- Minimized Pulse Width Distortion (PWD)
- Very High mon Mode Rejection (CMR)
- Hysteresis
- Safety approval
- UL 1577 recognized with 5000 VRMS for 1 minute for
LTV-480P and LTV-480W
- VDE DIN EN 60747-5-5 Approved
VIORM = 891Vpeak for LTV-480P
VIORM = 1140Vpeak...
