LTV-825 - Photocoupler

This page provides the datasheet information for the LTV-825, a member of the LTV-815 Photocoupler family.

Datasheet Summary

Description

1.1

Features

  • Current transfer ratio ( CTR : MIN. 600% at IF = 1mA, VCE = 2V ).
  • High input-output isolation voltage ( Viso = 5,000Vrms ).
  • Response time ( tr : TYP. 60s at VCE = 2V, IC = 10mA, RL = 100 ).
  • Dual-in-line package : LTV-815 : 1-channel type LTV-825 : 2-channel type LTV-845 : 4-channel type.
  • Wide lead spacing package : LTV-815M : 1-channel type LTV-825M : 2-channel type LTV-845M : 4-channel type.
  • Surface mounting package : LTV-815S : 1-channel type LTV-825S : 2-chann.

📥 Download Datasheet

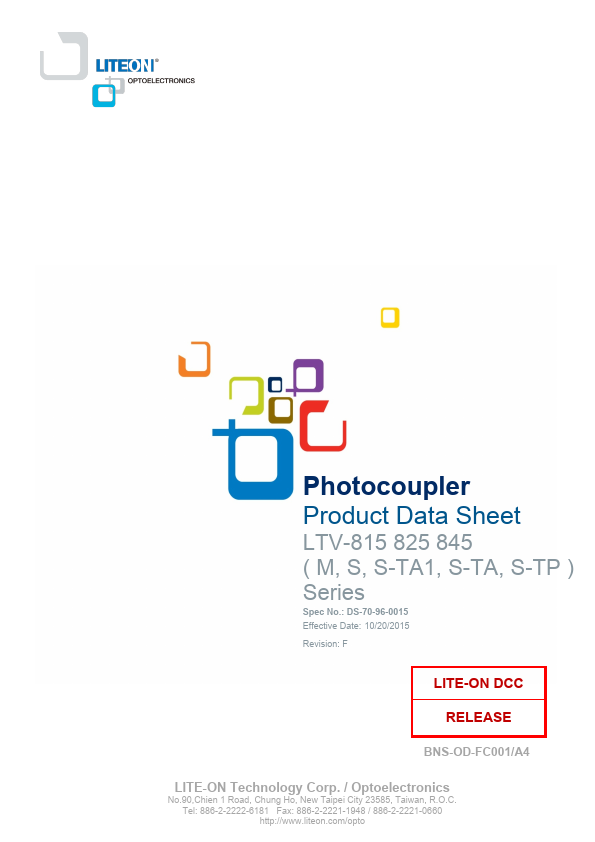

Datasheet preview – LTV-825

Datasheet Details

Part number LTV-825
Manufacturer LITEON
File Size 822.53 KB
Description Photocoupler
Datasheet download datasheet LTV-825 Datasheet

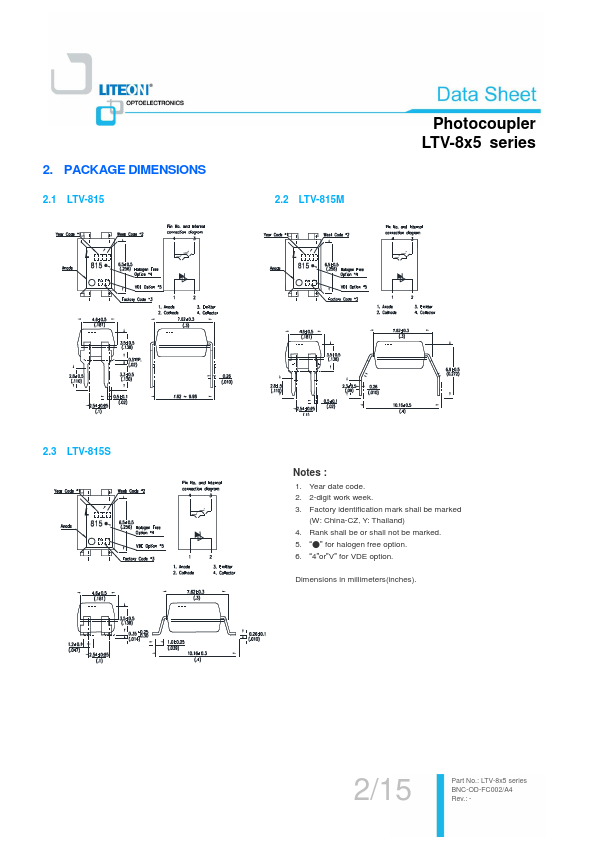

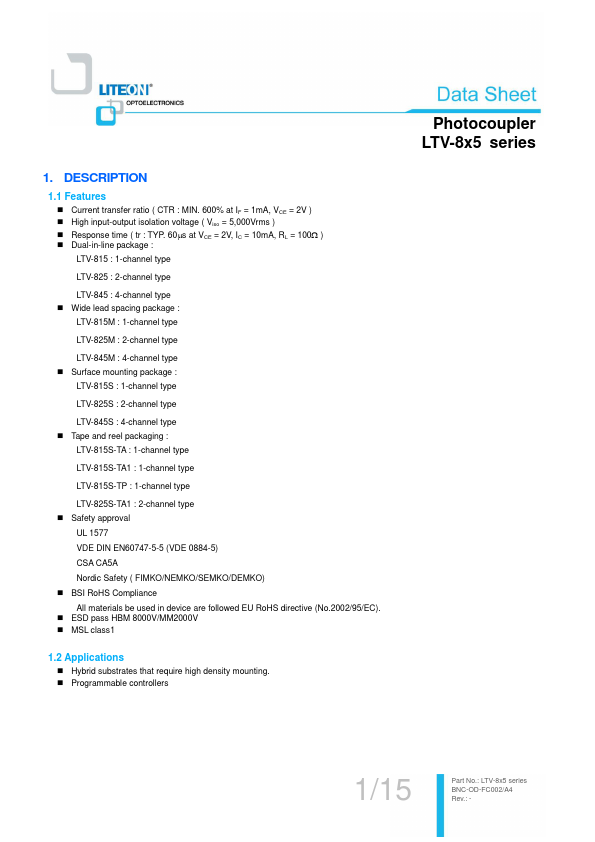

Additional preview pages of the LTV-825 datasheet.
