LTW-C191TS5 - SMD LED

Datasheet Summary

Description

SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

Features

Meet RoHS.
Extra thin (0.55H mm) Chip LED.
Ultra bright InGaN Chip LED.
Package in 8mm tape on 7" diameter reels.
EIA STD package.
I. C. compatible.
Compatible with automatic placement equipment.
Compatible with infrared reflow solder process 1.2.

LITE-ON

📥 Download Datasheet

Datasheet Details

Part number	LTW-C191TS5
Manufacturer	LITEON
File Size	454.19 KB
Description	SMD LED
Datasheet	LTW-C191TS5 Datasheet

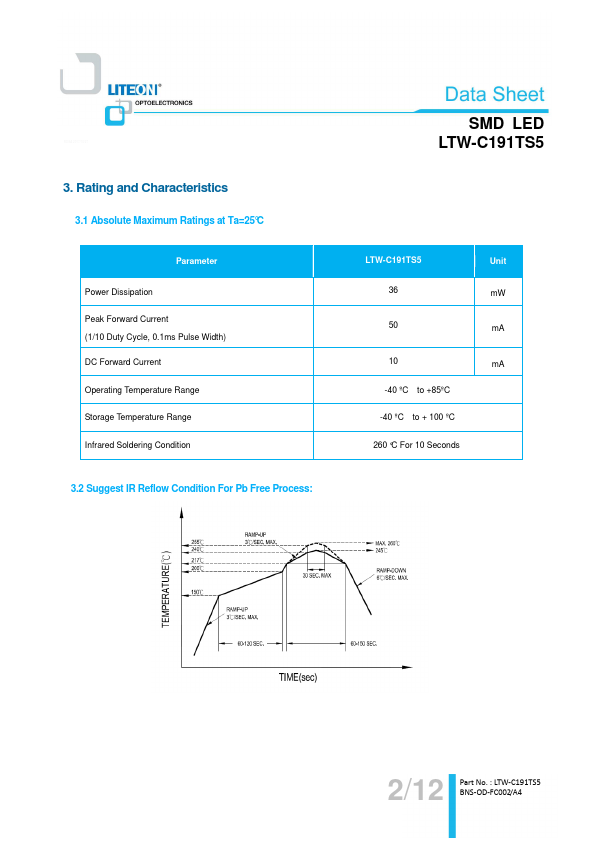

Additional preview pages of the LTW-C191TS5 datasheet.

📁 Similar Datasheet

LTW-C191DS5 - SMD LED (LITEON)
LTW-C193SN5 - SMD LED (LITEON)
LTW-C193TS5 - SMD LED (LITEON)
LTW-C194TS5 - SMD LED (LITEON)
LTW-C281DS5 - SMD LED (LITEON)
LTW-C283DS5 - SMD LED (LITEON)
LTW-006DCG-E2 - Specific Lighting (LITEON)
LTW-010DCG - Specific Lighting (LITEON)
LTW-020ZDCG - Display & Mobile (LITEON)
LTW-170TK - SMD LED (LITEON)

Other Datasheets by LITE-ON

LTW-C193DM5 - LED Display
LTW-008RGB2-PH1 - Specific Lighting
LTW-2R3D7 - Through Hole Lamp
LTW-5630AZL57-EUH - Specific Lighting
LTW-5630SD530 - Specific Lighting
LTW-M140ZVS - SMD LED
LTW-M670GS - Yellow LED
LTW-M670ZVS-BT - Yellow LED

Full PDF Text Transcription

Click to expand full text

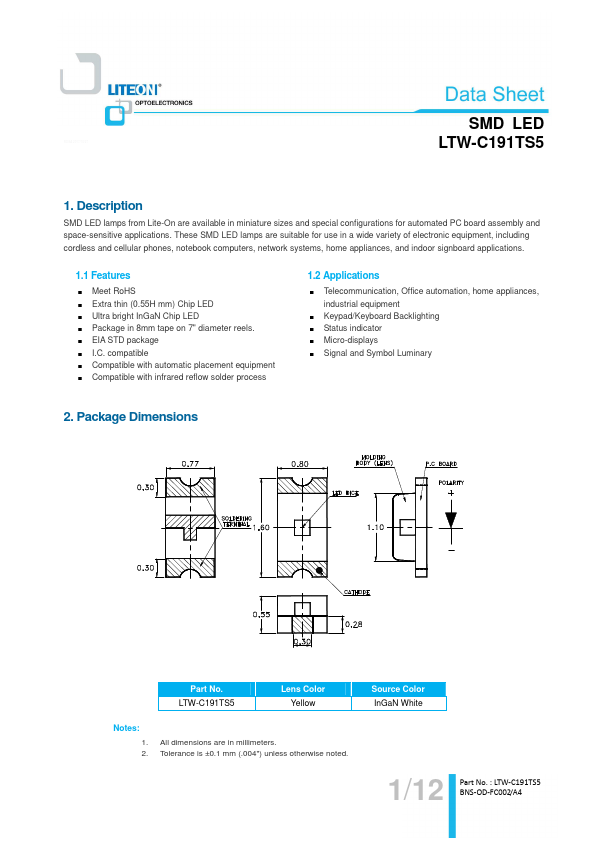

SMD LED Product Data Sheet LTW-C191TS5 Spec No. :DS22-2004-201 Effective Date: 03/04/2020 Revision: E LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto ROSA 2017/10/27 SMD LED LTW-C191TS5 1. Description SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications. 1.1 Features  Meet RoHS  Extra thin (0.
