MBR1040, MBR1030-LITE SCHOTTKY BARRIER RECTIFIERS

MBR1040 Description

LITE-ON SEMICONDUCTOR SCHOTTKY BARRIER RECTIFIERS MBR1030 thru 1060 REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 10 Amperes .

MBR1040 Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

MBR1040 Applications

* MECHANICAL DATA Case : TO-220AC molded plastic Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) B C K PIN 12 I H PIN 1 PIN 2 TO-220AC L M TO-220AC DIM. MIN. MAX. D A 14.22 15.88 A B 9.65 10.67 E C 2.54 3.43 D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR1040, MBR1030-LITE. Please refer to the document for exact specifications by model.

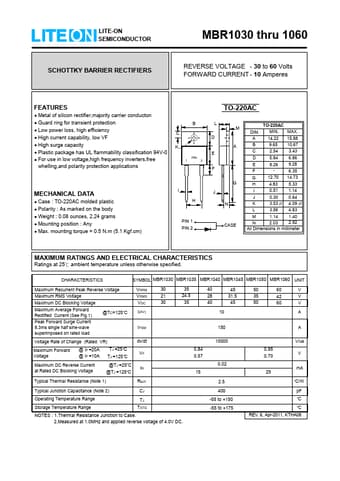

datasheet Preview Page 2 datasheet Preview Page 3
