MBR1040CT, MBR1030CT-LITE SCHOTTKY BARRIER RECTIFIERS

MBR1040CT Description

LITE-ON SEMICONDUCTOR MBR1030CT thru 1060CT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 10 Amperes .

MBR1040CT Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

MBR1040CT Applications

* MECHANICAL DATA Case : TO-220AB molded plastic Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any TO-220AB B C K PIN 123 I HH PIN 1 PIN 3 L M D A E F G J N PIN 2 CASE TO-220AB DIM. MIN. MAX. A 14.22 15.88 B 9.65 10.67 C 2.54 3.43 D 5.84 6.86 E 8.26 9.28 F -

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR1040CT, MBR1030CT-LITE. Please refer to the document for exact specifications by model.

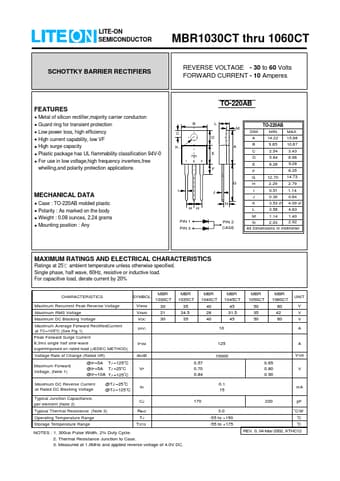

datasheet Preview Page 2

Datasheet Details

Part number
MBR1040CT, MBR1030CT-LITE
Manufacturer
LITE-ON
File Size
37.60 KB
Datasheet
MBR1030CT-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBR1040CT, MBR1030CT-LITE.
Please refer to the document for exact specifications by model.
