MBRF1030CT, MBRF1030CT-LITE - SCHOTTKY BARRIER RECTIFIERS

MBRF1030CT Description

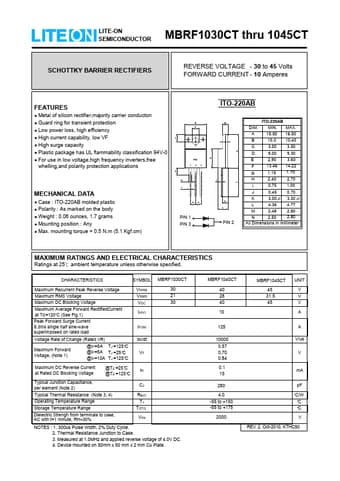

LITE-ON SEMICONDUCTOR MBRF1030CT thru 1045CT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 45 Volts FORWARD CURRENT - 10 Amperes .

MBRF1030CT Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

MBRF1030CT Applications

* MECHANICAL DATA Case : ITO-220AB molded plastic Polarity : As marked on the body Weight : 0.06 ounces, 1.7 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) B K PIN 123 G I HH PIN 1 PIN 3 EC D FA ITO-220AB M J N L PIN 2 ITO-220AB DIM. MIN. MAX. A 15.50 16.50 B 10.0 10.40

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF1030CT, MBRF1030CT-LITE. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF1030CT, MBRF1030CT-LITE
Manufacturer
LITE-ON
File Size
81.84 KB
Datasheet
MBRF1030CT-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBRF1030CT, MBRF1030CT-LITE.
Please refer to the document for exact specifications by model.
