SBF1040, SBF1040-LITE SCHOTTKY BARRIER RECTIFIERS

LITE-ON

SBF1040 Description

LITE-ON SEMICONDUCTOR SCHOTTKY BARRIER RECTIFIERS SBF1040 REVERSE VOLTAGE - 40 Volts FORWARD CURRENT - 10 Amperes .

SBF1040 Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

SBF1040 Applications

* MECHANICAL DATA Case : ITO-220AC molded plastic Polarity : As marked on the body Weight : 0.06 ounces, 1.70 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) EC D FA ITO-220AC BM K PIN 12 G I H PIN 1 PIN 2 J N L ITO-220AC DIM. A MIN. 15.50 MAX. 16.50 B 10.0 10.40 C

📥 Download Datasheet

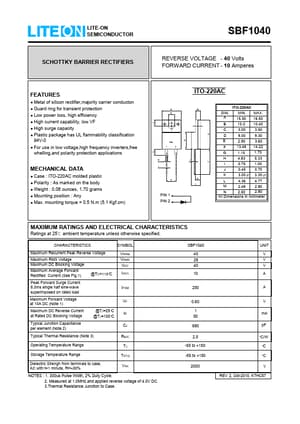

SBF1040 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBF1040, SBF1040-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SBF1040, SBF1040-LITE
Manufacturer: LITE-ON
File Size: 79.57 KB
Datasheet: SBF1040-LITE-ON.pdf
Description: SCHOTTKY BARRIER RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: SBF1040, SBF1040-LITE.
Please refer to the document for exact specifications by model.
