SBL1060, SBL1030-LITE SCHOTTKY BARRIER RECTIFIERS

SBL1060 Description

LITE-ON SEMICONDUCTOR SCHOTTKY BARRIER RECTIFIERS SBL1030 thru SBL1060 REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 10 Amperes .

SBL1060 Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and pol

SBL1060 Applications

* MECHANICAL DATA Case : TO-220AC molded plastic Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any Max. mounting torque = 0.5 N. m (5.1 Kgf. cm) B C K PIN 12 I H PIN 1 PIN 2 TO-220AC L M TO-220AC DIM. MIN. MAX. D A 14.22 15.88 A B 9.65 10.67 E C 2.54 3.43 D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBL1060, SBL1030-LITE. Please refer to the document for exact specifications by model.

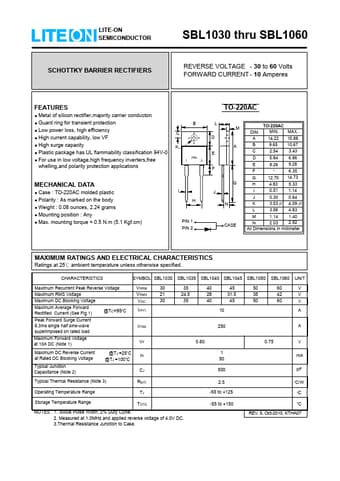

datasheet Preview Page 2 datasheet Preview Page 3
