TA1300L - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE

This page provides the datasheet information for the TA1300L, a member of the TA1100L-LITE SURFACE MOUNT THYRISTOR SURGE PROTECTIVE family.

Features

  • Oxide Glass Passivated Junction Bidirectional protection in a single device Surge capabilities up to 50A @ 10/1000us or 150A @ 8/20us High off state Impedance and low on state voltage Plastic material has UL flammability classification 94V-0.

📥 Download Datasheet

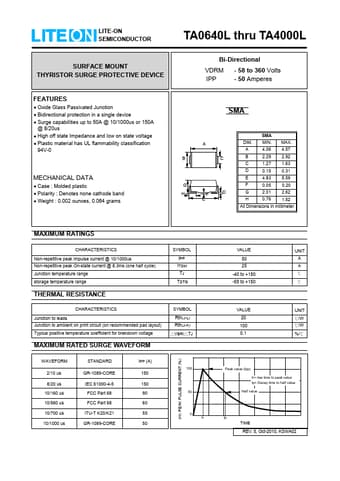

Datasheet preview – TA1300L
