W06G, W06G-LITE GLASS PASSIVATED BRIDGE RECTIFIERS

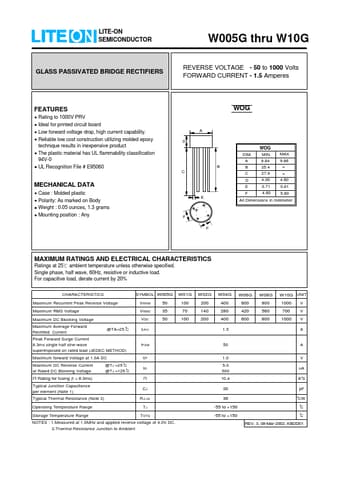

📥 Download Datasheet  Datasheet Preview Page 1

Description

LITE-ON SEMICONDUCTOR W005G thru W10G GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 1.5 Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: W06G, W06G-LITE. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
W06G, W06G-LITE
Manufacturer
LITE-ON
File Size
32.72 KB
Datasheet
W06G-LITE-ON.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: W06G, W06G-LITE.
Please refer to the document for exact specifications by model.

Features

* Rating to 1000V PRV Ideal for printed circuit board Low forward voltage drop, high current capability. Reliable low cost construction utilizing molded epoxy technique results in inexpensive product The plastic material has UL flammability classification 94V-0 UL Recognition File # E95060 MECHANICAL
