6N135S-H, 6N135-H - Photocoupler

6N135S-H Description

Photocoupler Product Data Sheet 6N135-H / 6N136-H series Spec No.:DS70-2016-0027 Effective Date: 05/28/2019 Revision: B LITE-ON DCC RELEASE BNS-OD-FC.
Photocoupler 6N135-H / 6N136-H series The 6N135-H/6N136-H consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.

6N135S-H Features

* High speed
* 1MBd typical
* Available in Dual-in-line, Wide lead spacing, Surface mounting package.
* Storable output.

6N135S-H Applications

* Isolation in line receivers
* Digital isolation for A/D, D/A conversion
* Ground loop elimination
* Feedback Element in Switching Mode Power Supplier
* Pulse transformer replacement
* Power transistor isolation in motor drives
* Interface between Microprocessor system,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 6N135S-H, 6N135-H. Please refer to the document for exact specifications by model.

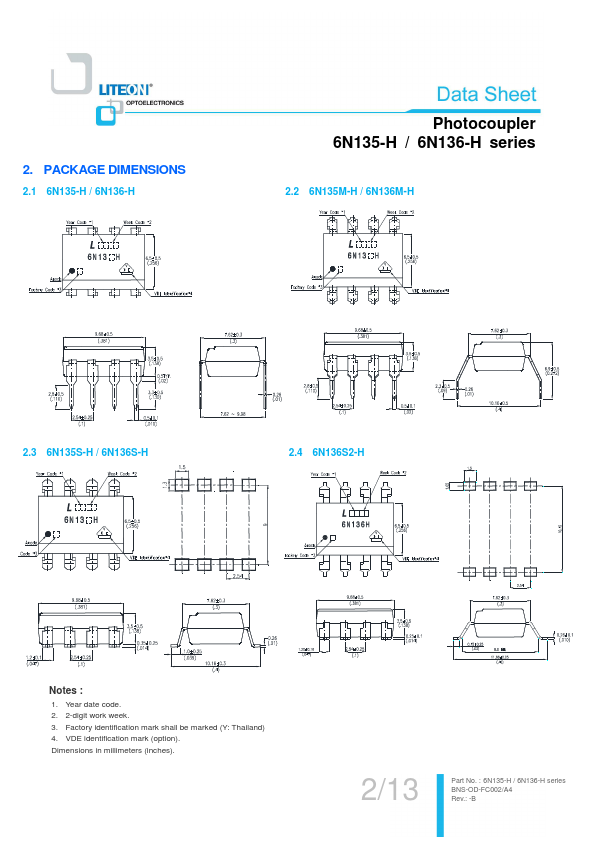

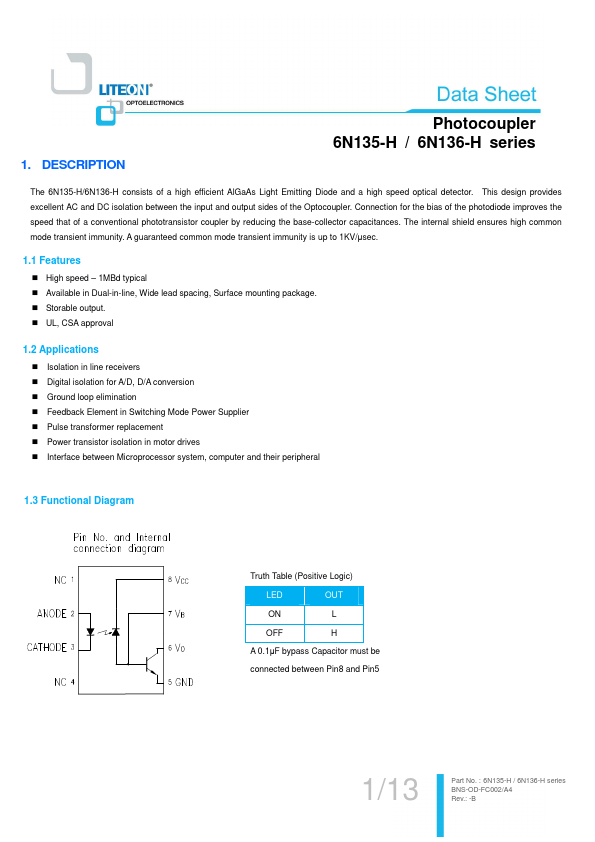

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
6N135S-H, 6N135-H
Manufacturer
LITEON
File Size
474.47 KB
Datasheet
6N135-H-LITEON.pdf
Description
Photocoupler
Note
This datasheet PDF includes multiple part numbers: 6N135S-H, 6N135-H.
Please refer to the document for exact specifications by model.
