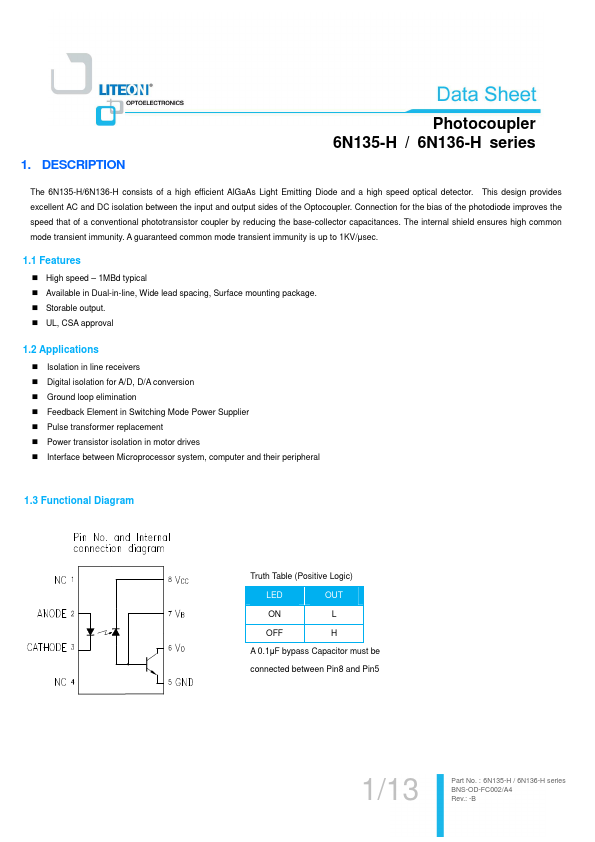

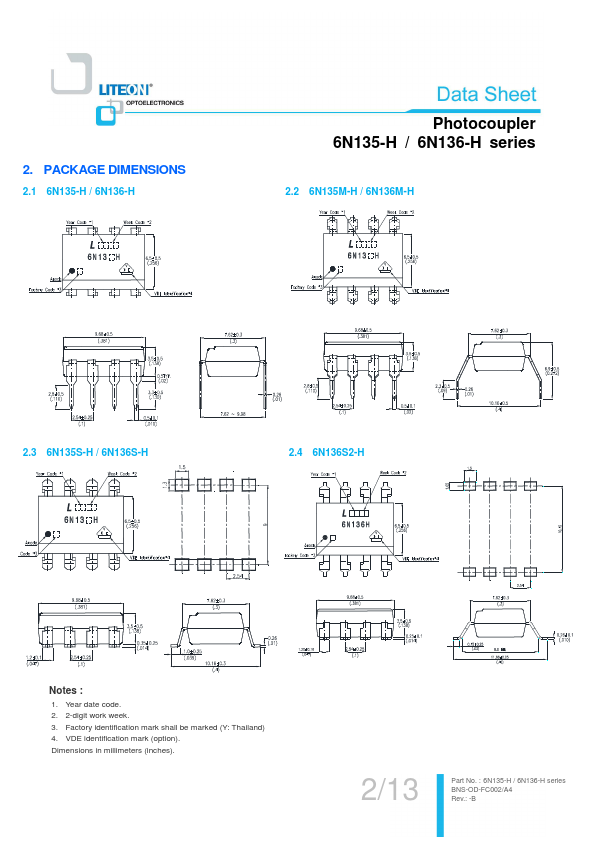

Photocoupler 6N135-H / 6N136-H series The 6N135-H/6N136-H consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.

This design provides excellent AC and DC isolation between the input and output sides of the Optocoupler.

Connection for the bias of the photodiode

6N136S-H Features

* High speed

* 1MBd typical

* Available in Dual-in-line, Wide lead spacing, Surface mounting package.

* Storable output.

* UL, CSA approval 1.2 Applications

* Isolation in line receivers

* Digital isolation for A/D, D/A conversion

* Ground loop elimination
