LSHD-7801

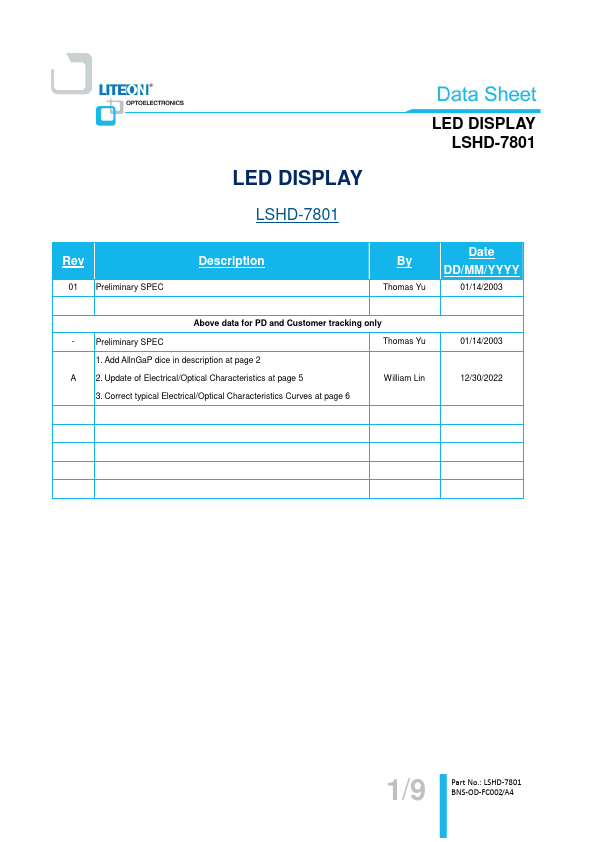

Description
By
Thomas Yu
Date DD/MM/YYYY
01/14/2003
Above data for PD and Customer tracking only
- Preliminary SPEC
Thomas Yu
1. Add Alln Ga P dice in description at page 2
A 2. Update of Electrical/Optical Characteristics at page 5
William Lin
3. Correct typical Electrical/Optical Characteristics Curves at page 6
01/14/2003 12/30/2022
1/9
Part No.: LSHD-7801 BNS-OD-FC002/A4

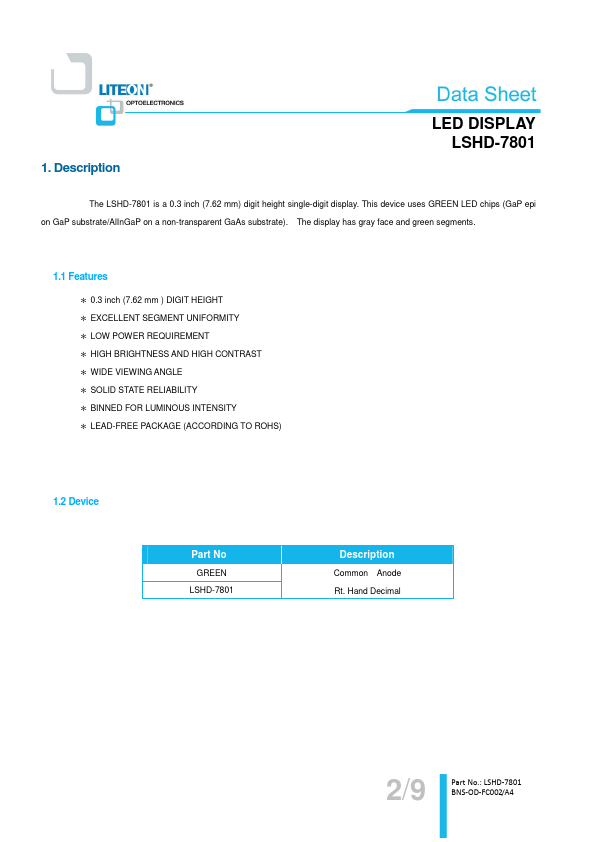

1. Description
LED DISPLAY LSHD-7801
The LSHD-7801 is a 0.3 inch (7.62 mm) digit height single-digit display. This device uses GREEN LED chips (Ga P epi on Ga P substrate/Al In Ga P on a non-transparent Ga As substrate). The display has gray face and green segments.
1.1 Features
＊ 0.3 inch (7.62 mm ) DIGIT HEIGHT ＊ EXCELLENT SEGMENT UNIFORMITY ＊ LOW POWER REQUIREMENT ＊ HIGH BRIGHTNESS AND HIGH CONTRAST ＊ WIDE VIEWING ANGLE ＊ SOLID STATE RELIABILITY ＊ BINNED FOR LUMINOUS INTENSITY ＊ LEAD-FREE PACKAGE (ACCORDING TO ROHS)
1.2 Device
Part No
GREEN LSHD-7801
Description mon Anode Rt. Hand Decimal
