LSP2015 Datasheet - LITEON

LSP2015 300mA CMOS LDO

The LSP2015 is a low dropout linear regulator (LDO) family with 300mA output current. The output voltage can be fixed or adjustable, and are stable with 1.0uF or higher value ceramic capacitors. The LSP2015 family provides several protections, such as over current protection (OCP), short circuit pro.

LSP2015 Features

* Operating Input Voltage : 2.2V~5.5V

* Has Fixed Output Voltage (Fixed-VOUT) And Adjustable Output Voltage (Adj-VOUT) Options

* Fixed Output voltage range: 1.0V to 4.1V by 0.1V steps

* Output current is up to 300 mA

* Built-in Over Current Protection (OCP), S

LSP2015-LITEON.pdf

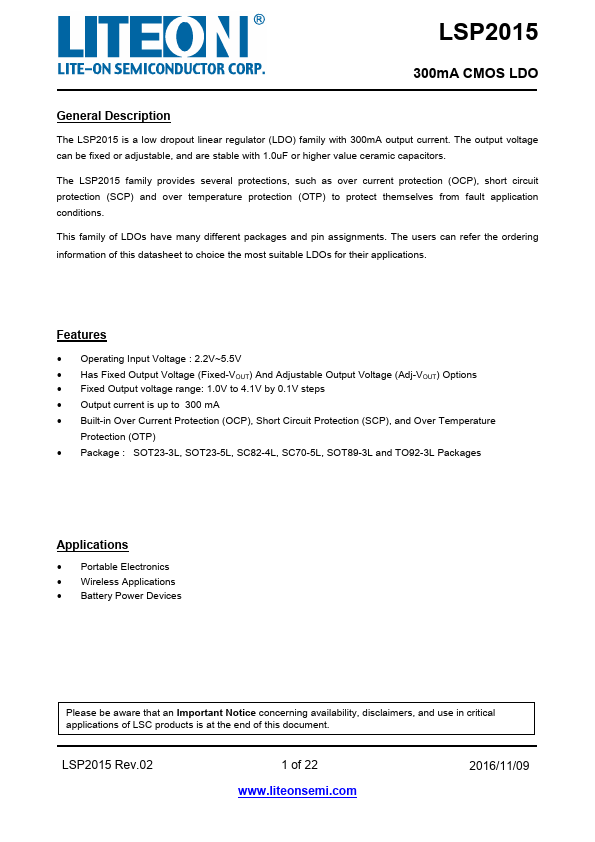

Preview of LSP2015 PDF

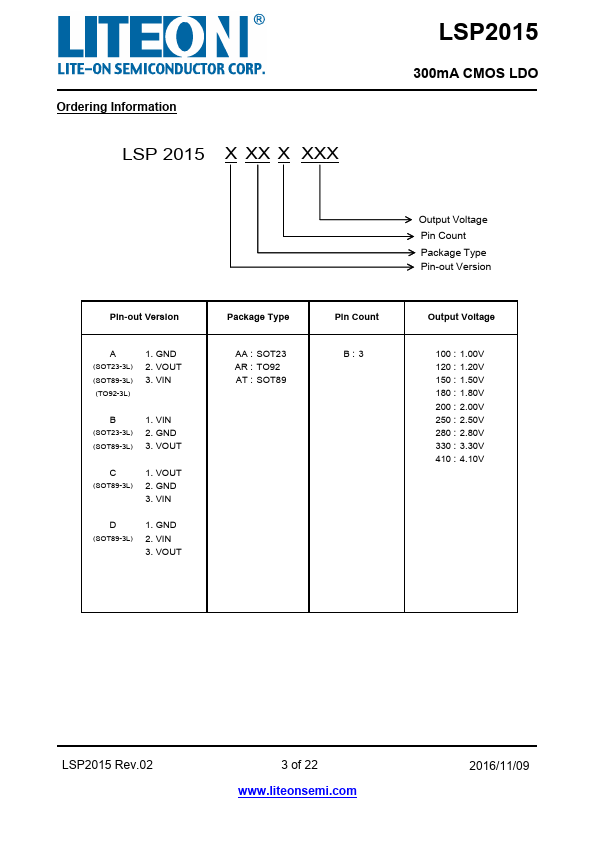

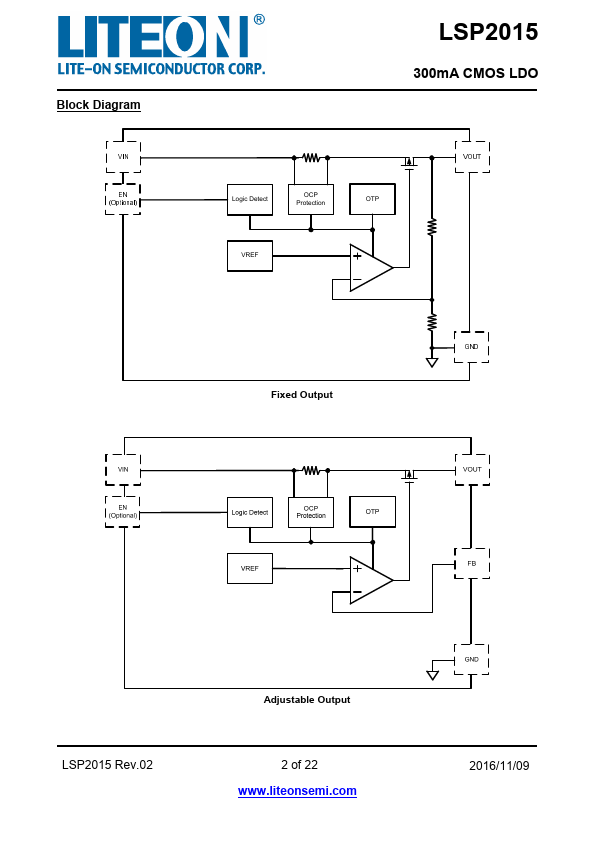

LSP2015 Datasheet Preview Page 2 LSP2015 Datasheet Preview Page 3

Datasheet Details

Part number:

LSP2015

Manufacturer:

LITEON

File Size:

729.19 KB

Description:

300ma cmos ldo.
