LTC-2721HG

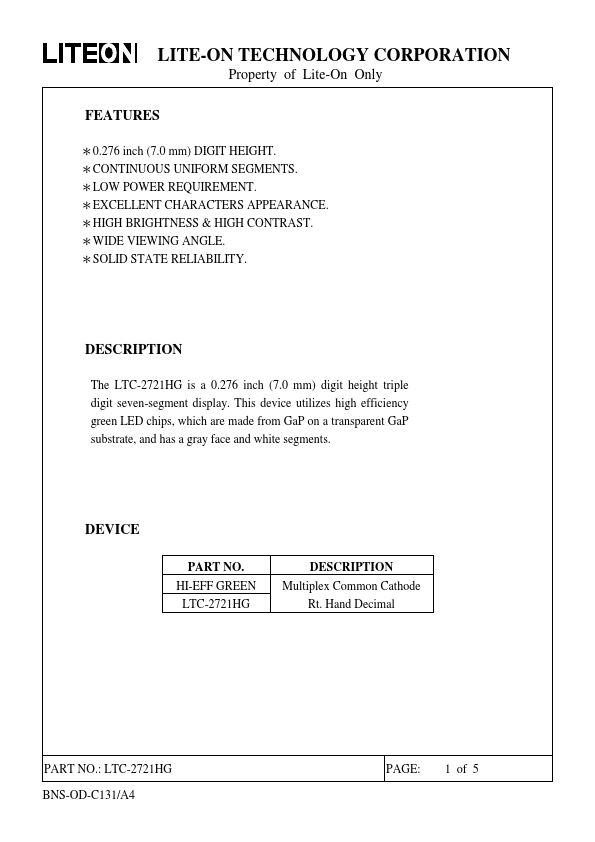

FEATURES
＊0.276 inch (7.0 mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY.
DESCRIPTION
The LTC-2721HG is a 0.276 inch (7.0 mm) digit height triple digit seven-segment display. This device utilizes high efficiency green LED chips, which are made from Ga P on a transparent Ga P substrate, and has a gray face and white segments.
DEVICE
PART NO. HI-EFF GREEN LTC-2721HG
DESCRIPTION
Multiplex mon Cathode
Rt. Hand Decimal
PART NO.: LTC-2721HG BNS-OD-C131/A4
PAGE: 1 of 5
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

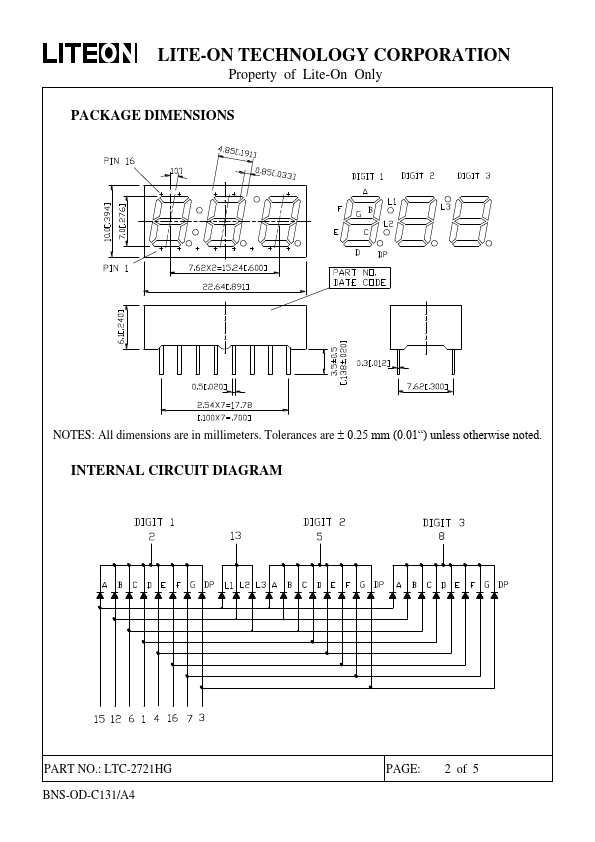

PACKAGE DIMENSIONS
NOTES: All dimensions are in millimeters. Tolerances are 0.25 mm (0.01“) unless otherwise noted.
INTERNAL CIRCUIT DIAGRAM
PART NO.: LTC-2721HG BNS-OD-C131/A4
PAGE: 2 of 5
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
PIN CONNECTION
No.
CONNECTION
ANODE D
2 MON CATHODE DIGIT 1
ANODE...
