LTH-301-07 Photointerrupter

LTH-301-07 Description

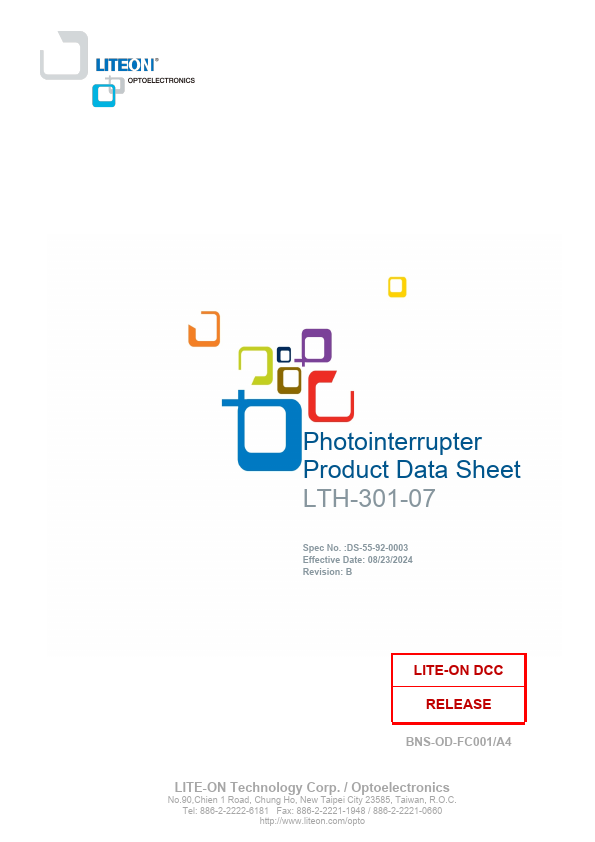

Photointerrupter Product Data Sheet LTH-301-07 Spec No.:DS-55-92-0003 Effective Date: 08/23/2024 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE.
Photointerrupters consist of infrared emitters and photo detectors in slotted, reflective and actuator type switches.

LTH-301-07 Features

* NON-Contact Switching
* For Direct Pc Board Or Dual-In-Line Socket Mounting

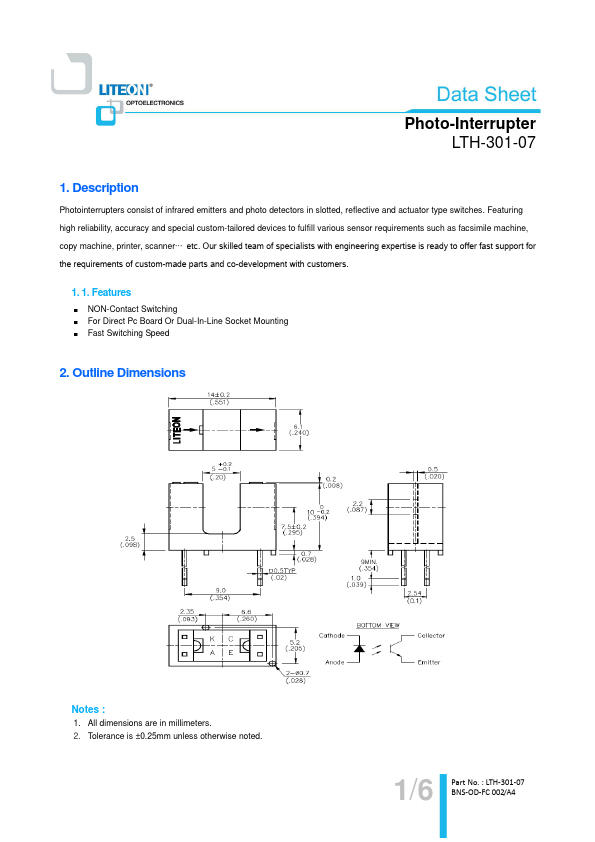

* Fast Switching Speed 2. Outline Dimensions Notes : 1. All dimensions are in millimeters. 2. Tolerance is ±0.25mm unless otherwise noted. 1/6 Part No. : LTH-301-07 BNS-OD-FC 002/A4 3. Absolute Maximum Ratin

📥 Download Datasheet

Preview of LTH-301-07 PDF

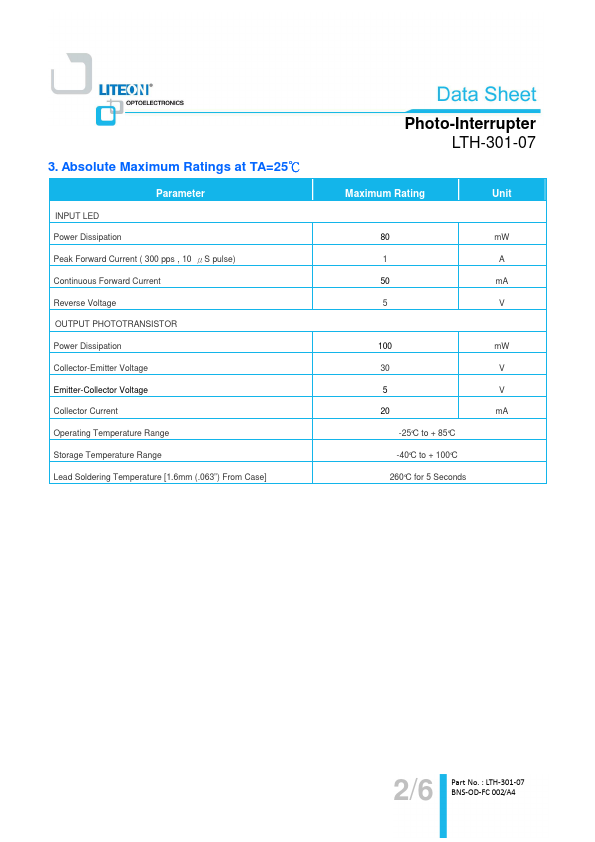

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTH-301-07
Manufacturer
LITEON
File Size
368.56 KB
Datasheet
LTH-301-07-LITEON.pdf
Description
Photointerrupter
