LTL-14CAJHBP Through Hole Lamp

📥 Download Datasheet  Datasheet Preview Page 1

Description

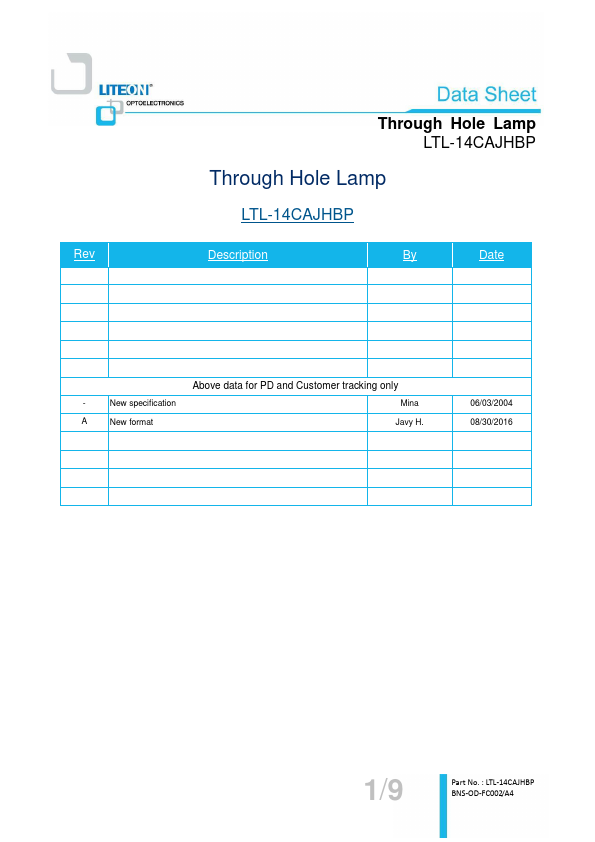

Through Hole Lamp Product Data Sheet LTL-14CAJHBP Spec No.: DS20-2004-157 Effective Date: 10/05/2016 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 L.
By Date Above data for PD and Customer tracking only - New specification Mina A New format Javy H.

📥 Download Datasheet

Preview of LTL-14CAJHBP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTL-14CAJHBP
Manufacturer
LITEON
File Size
559.96 KB
Datasheet
LTL-14CAJHBP-LITEON.pdf
Description
Through Hole Lamp

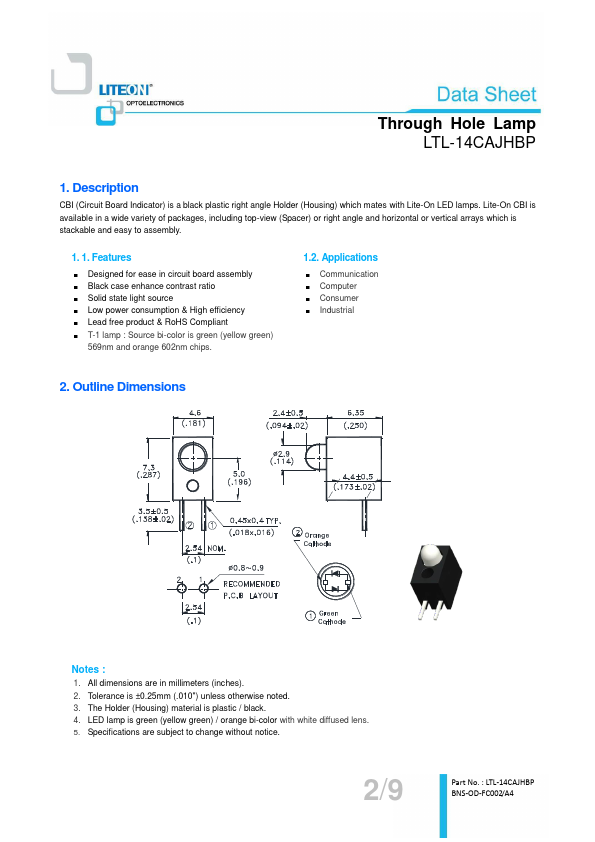

Features

* Designed for ease in circuit board assembly
* Black case enhance contrast ratio
* Solid state light source
* Low power consumption & High efficiency
* Lead free product & RoHS Compliant
* T-1 lamp : Source bi-color is green (yellow green) 569nm and orange 602nm chips. 1.2.

Applications

* Communication
* Computer
* Consumer
* Industrial 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic / black. 4. LED lamp is green (yellow green) / orange
