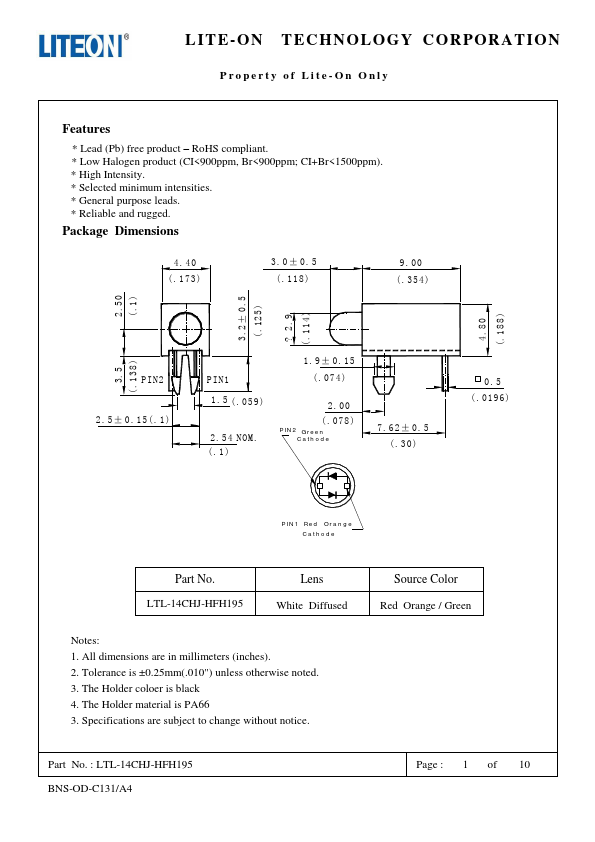

LTL-14CHJ-HFH195
Features
- Lead (Pb) free product
- Ro HS pliant.
- Low Halogen product (CI<900ppm, Br<900ppm; CI+Br<1500ppm).
- High Intensity.
- Selected minimum intensities.
- General purpose leads.
- Reliable and rugged.
Package Dimensions
4.40 (.173)
3.0± 0.5 (.118)
9.00 (.354)
4.80 (.188)
3.2± 0.5 (.125) ? 2.9 (.114)
2.50 (.1)
3.5 (.138)
PIN2 2.5± 0.15(.1)
PIN1 1.5 (.059)
2.54 NOM. (.1)
1.9± 0.15 (.074)
2.00 (.078)
PIN 2 Gr e en Ca th od e
7.62± 0.5 (.30)
0.5 (.0196)
PIN 1 Red Or a n g e Ca th od e
Part No. LTL-14CHJ-HFH195
Lens White Diffused
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. The Holder coloer is black 4. The Holder material is PA66 3. Specifications are subject to change without notice.
Source Color Red Orange / Green
Part No. : LTL-14CHJ-HFH195 BNS-OD-C131/A4
Page : 1 of 10
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Absolute Maximum Ratings at TA=25 °C
Parameter Power Dissipation...
