LTL-14FGEAJH184G Through Hole Lamp

📥 Download Datasheet  Datasheet Preview Page 1

Description

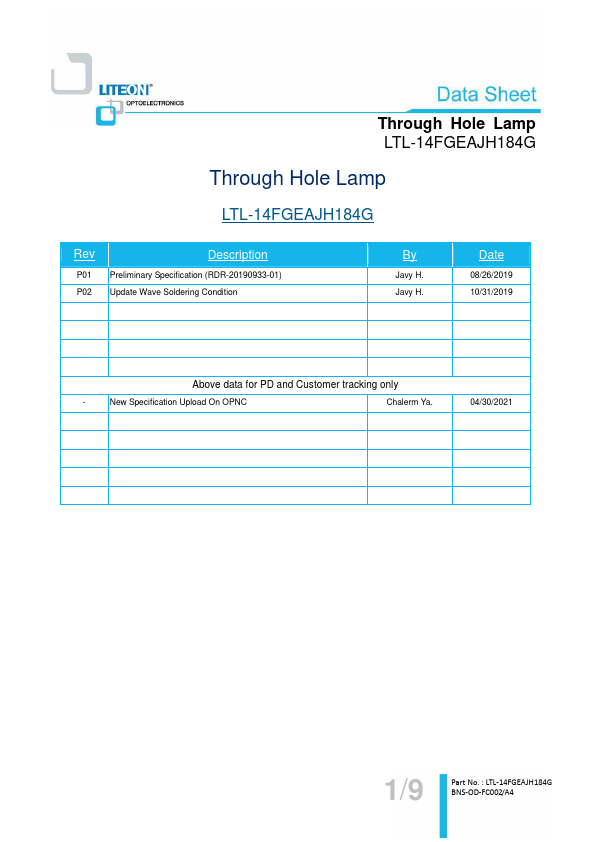

Through Hole Lamp Product Data Sheet LTL-14FGEAJH184G Spec No.:DS20-2021-0046 Effective Date: 06/02/2021 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001.
P01 Preliminary Specification (RDR-20190933-01) P02 Update Wave Soldering Condition By Javy H.

📥 Download Datasheet

Preview of LTL-14FGEAJH184G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTL-14FGEAJH184G
Manufacturer
LITEON
File Size
351.32 KB
Datasheet
LTL-14FGEAJH184G-LITEON.pdf
Description
Through Hole Lamp

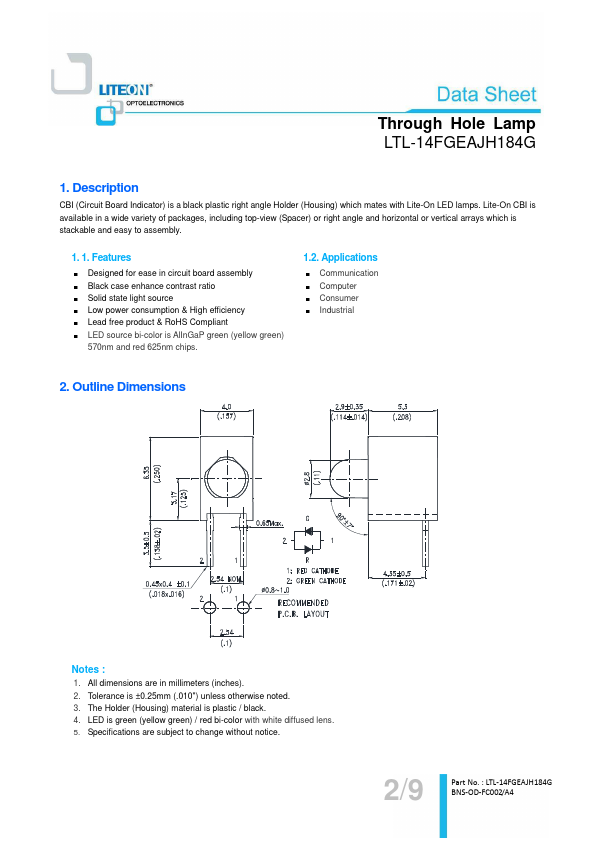

Features

* Designed for ease in circuit board assembly
* Black case enhance contrast ratio
* Solid state light source
* Low power consumption & High efficiency
* Lead free product & RoHS Compliant
* LED source bi-color is AlInGaP green (yellow green) 570nm and red 625nm chips. 1.2. A

Applications

* Communication
* Computer
* Consumer
* Industrial 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic / black. 4. LED is green (yellow green) / red bi-color
