LTL-14FGFAJ2H229T Datasheet - LITEON

LTL-14FGFAJ2H229T, Through Hole Lamp

Through Hole Lamp Product Data Sheet LTL-14FGFAJ2H229T Spec No.
:DS20-2021-0050 Effective Date: 12/30/2022 Revision: A LITE-ON DCC RELEASE BNS-OD-FC00

Features

* Designed for ease in circuit board assembly.

* Black case enhance contrast ratio.

* Low power consumption & High efficiency.

* Lead free product & RoHS Compliant.

* Source color is AlInGaP Orange 605nm & Yellow Green 570nm chips.
White diffused lens
* It is in tape and reel

Applications

* Communication
* Computer
* Consumer

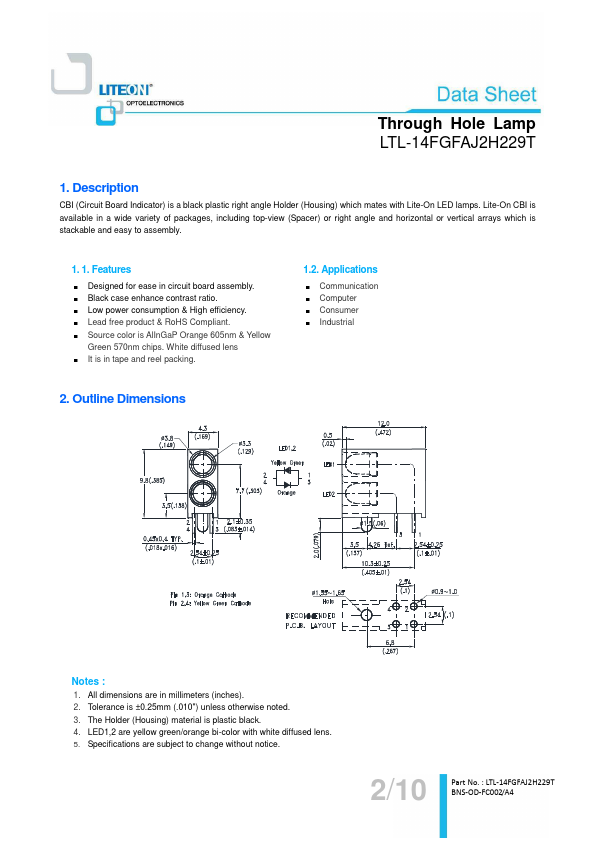

* Industrial Notes : 1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (.010") unless otherwise noted.
3. The Holder (Housing) material is plastic black.
4. LED1,2 are yellow green/orange bi-color with white diffused lens.
5
