LTL-1DEDJ

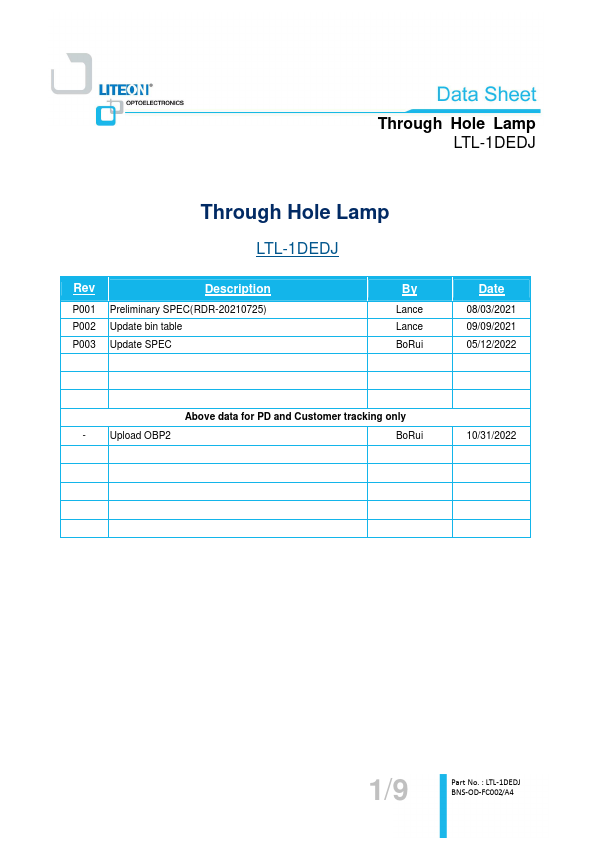

Description
P001 P002 P003
Preliminary SPEC(RDR-20210725) Update bin table Update SPEC
By
Lance Lance Bo Rui
Date
08/03/2021 09/09/2021 05/12/2022
Above data for PD and Customer tracking only
- Upload OBP2
Bo Rui
10/31/2022
1/9
Part No. : LTL-1DEDJ BNS-OD-FC002/A4
Through Hole Lamp LTL-1DEDJ
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- Yellow / Green Lamp & White Diffused lens.

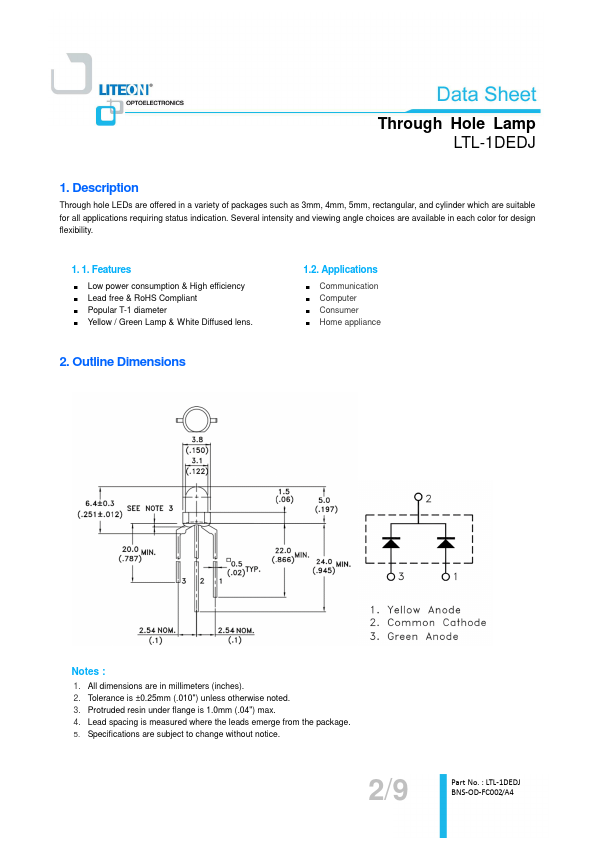

2. Outline Dimensions
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4....
