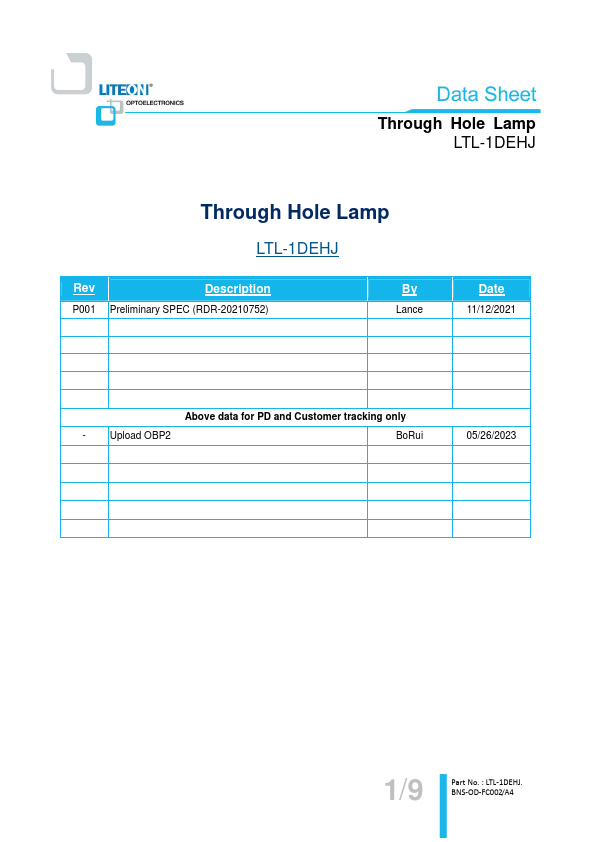

LTL-1DEHJ
Description
P001 Preliminary SPEC (RDR-20210752)
By
Lance
Date
11/12/2021
Above data for PD and Customer tracking only
- Upload OBP2
Bo Rui
05/26/2023
1/9
Part No. : LTL-1DEHJ. BNS-OD-FC002/A4

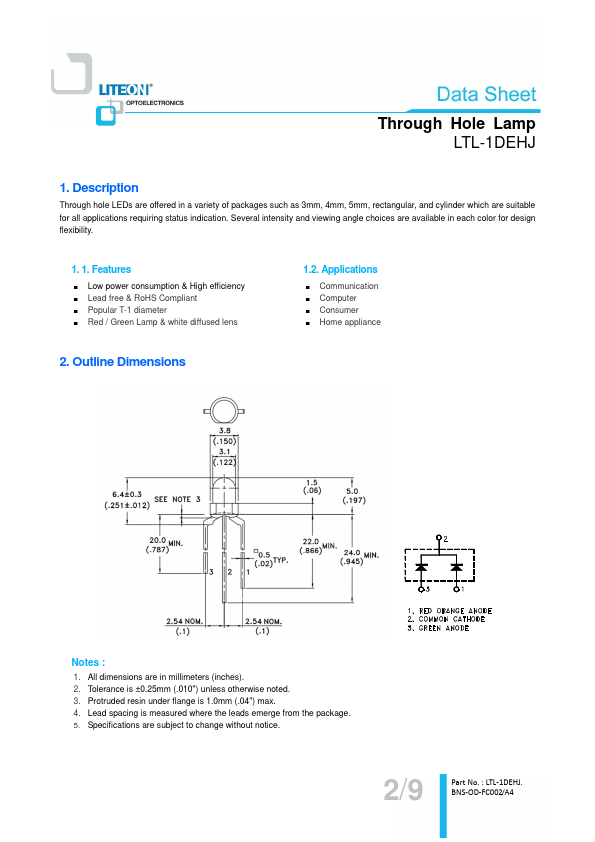

Through Hole Lamp LTL-1DEHJ
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter
- Red / Green Lamp & white diffused lens
2. Outline Dimensions
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5....
