LTL-2885G

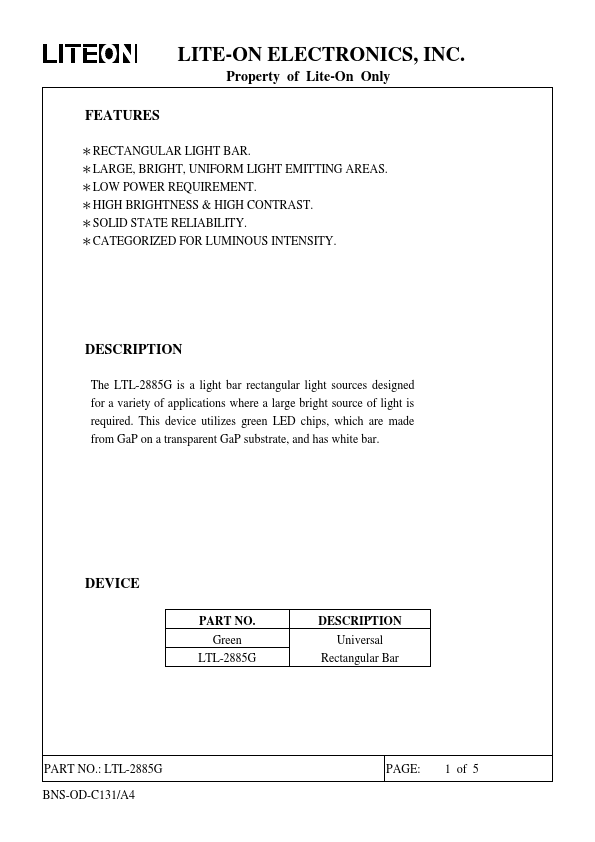

FEATURES
＊RECTANGULAR LIGHT BAR. ＊LARGE, BRIGHT, UNIFORM LIGHT EMITTING AREAS. ＊LOW POWER REQUIREMENT. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY.
DESCRIPTION
The LTL-2885G is a light bar rectangular light sources designed for a variety of applications where a large bright source of light is required. This device utilizes green LED chips, which are made from Ga P on a transparent Ga P substrate, and has white bar.
DEVICE
PART NO. Green
DESCRIPTION
Universal
Rectangular Bar
PART NO.: LTL-2885G BNS-OD-C131/A4
PAGE: 1 of 5
LITE-ON ELECTRONICS, INC.

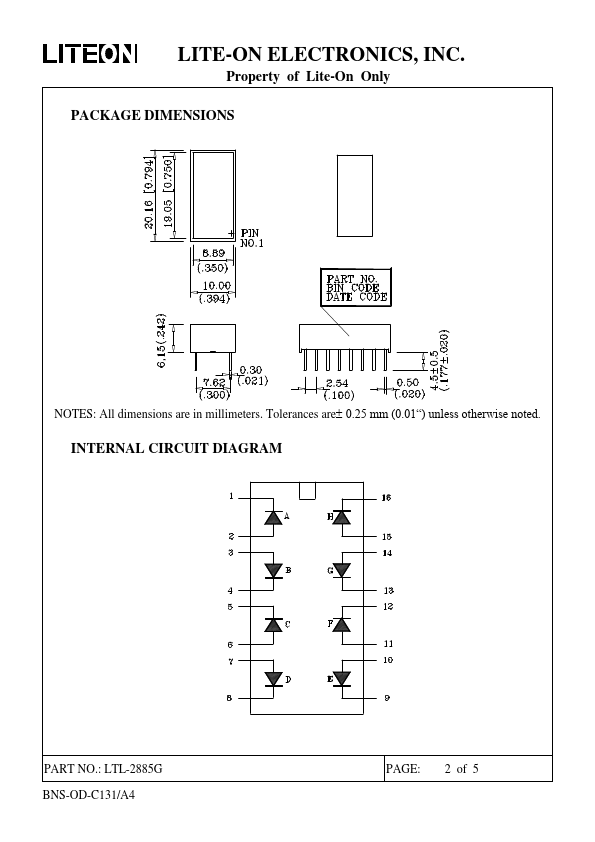

Property of Lite-On Only PACKAGE DIMENSIONS
NOTES: All dimensions are in millimeters. Tolerances are 0.25 mm (0.01“) unless otherwise noted.
INTERNAL CIRCUIT DIAGRAM
PART NO.: LTL-2885G BNS-OD-C131/A4
PAGE: 2 of 5
LITE-ON ELECTRONICS, INC.
Property of Lite-On Only
PIN CONNECTION
No
CONNECTION
CATHODE A
ANODE A
ANODE B
CATHODE B
CATHODE C
ANODE...
