LTL-293SJW - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-293SJW Datasheet Preview — Preview of LTL-293SJW PDF

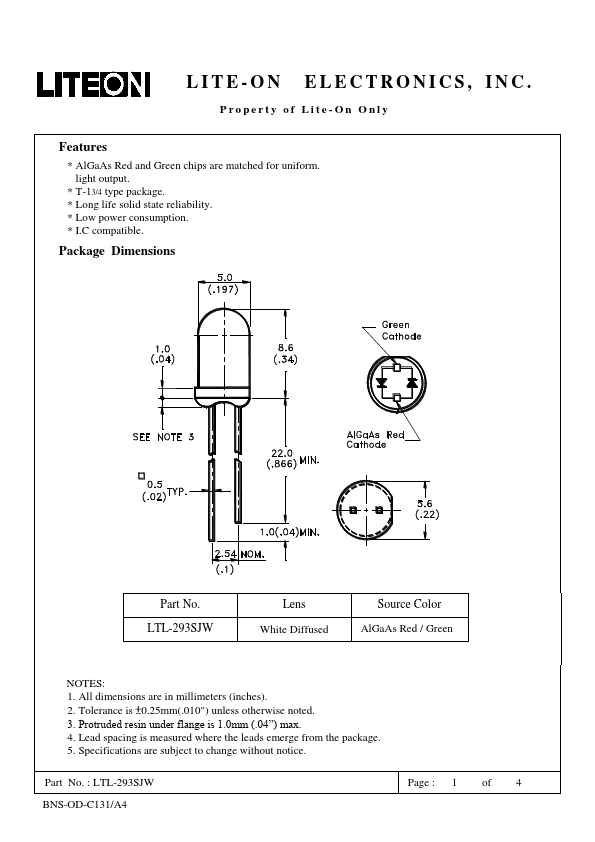

datasheet Preview Page 2

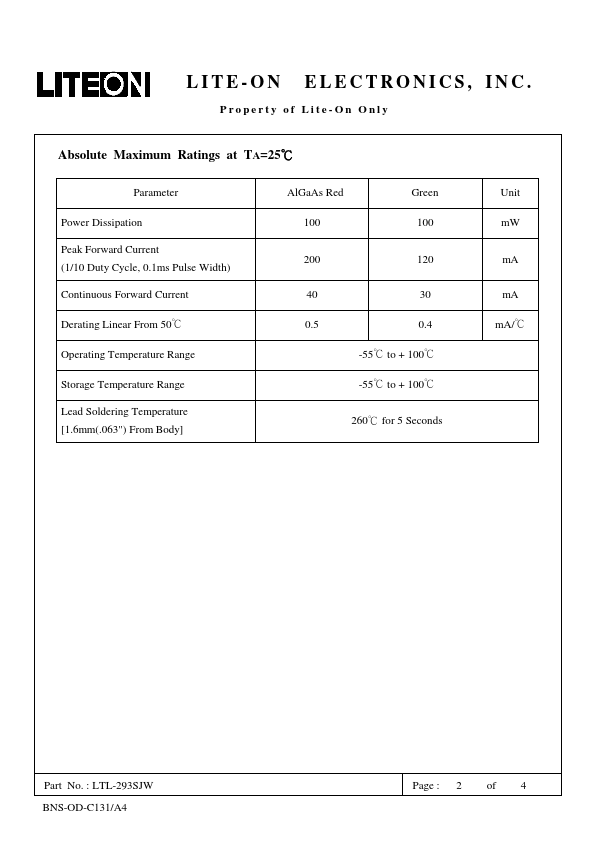

datasheet Preview Page 3

Datasheet Details

Part number	LTL-293SJW
Manufacturer	LITEON
File Size	452.00 KB
Description	Through Hole Lamp
Datasheet	LTL-293SJW-LITEON.pdf

LTL-293SJW Product details

Features

AlGaAs Red and Green chips are matched for uniform. light output.
T-13/4 type package.
Long life solid state reliability.
Low power consumption.
I. C compatible. Package Dimensions Part No. LTL-293SJW Lens White Diffused Source Color AlGaAs Red / Green NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04”) max. 4. Lead spacing is measured where the leads emerge f.
