LTL-307EE-012 - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-307EE-012 Datasheet Preview — Preview of LTL-307EE-012 PDF

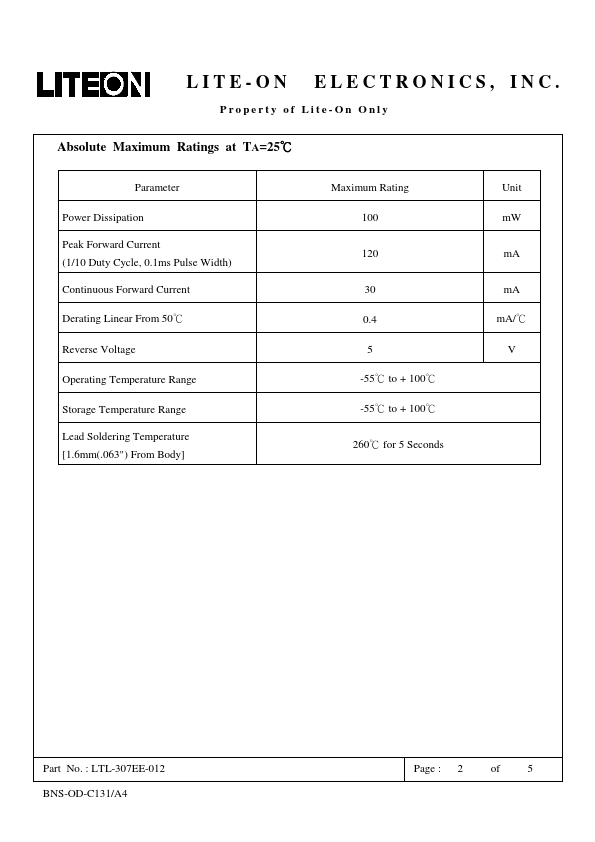

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTL-307EE-012
Manufacturer	LITEON ↗
File Size	450.40 KB
Description	Through Hole Lamp
Datasheet	LTL-307EE-012-LITEON.pdf

LTL-307EE-012 Product details

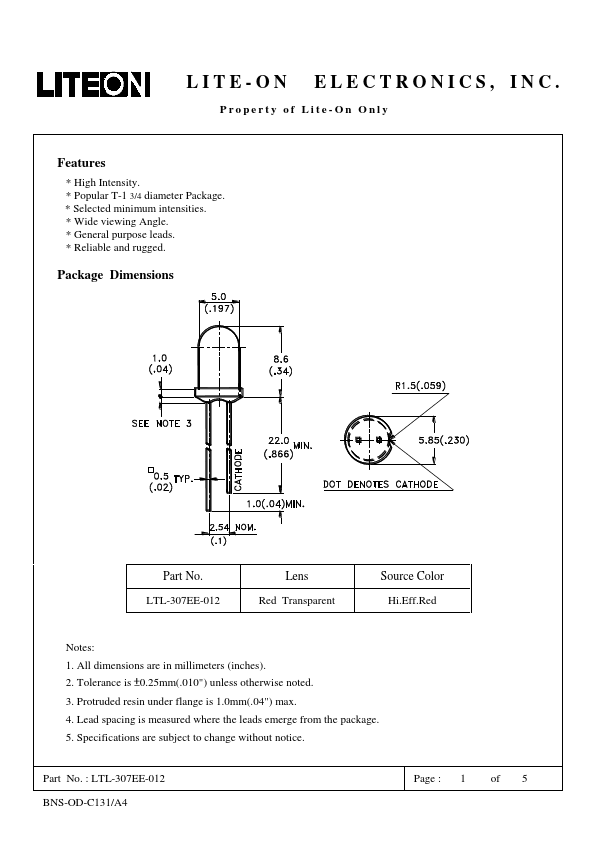

Features

High Intensity.
Popular T-1 3/4 diameter Package.
Selected minimum intensities.
Wide viewing Angle.
General purpose leads.
Reliable and rugged. Package Dimensions Part No. LTL-307EE-012 Lens Red Transparent Source Color Hi. Eff. Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package.
