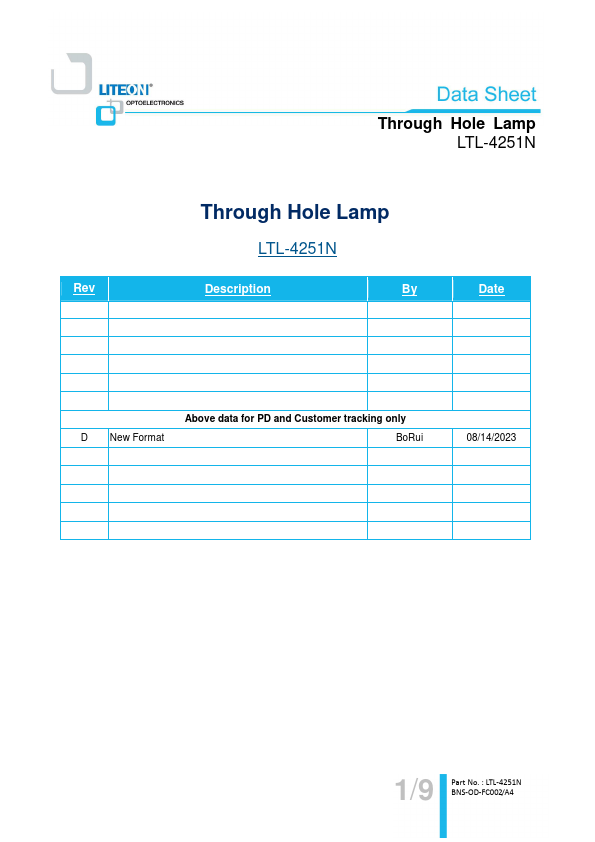

LTL-4251N
Description
By
Date
Above data for PD and Customer tracking only
D New Format
Bo Rui
08/14/2023
1/9 Part No. : LTL-4251N BNS-OD-FC002/A4
Through Hole Lamp LTL-4251N
1. Description
Through hole LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular, and cylinder which are suitable for all applications requiring status indication. Several intensity and viewing angle choices are available in each color for design flexibility.
1. 1. Features
- Low power consumption & High efficiency
- Lead free & Ro HS pliant
- Popular T-1 diameter package
- Versatile mounting on P.C. board or panel
- Reliable and rugged
- Yellow Lamp & Yellow Diffused Lens

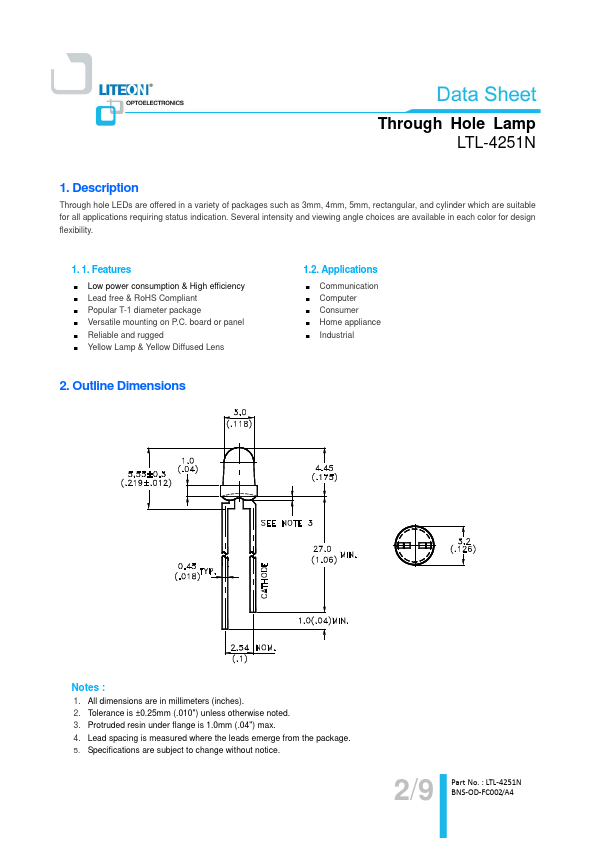

2. Outline Dimensions
1.2. Applications
- munication
- puter
- Consumer
- Home appliance
- Industrial
Notes :
1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lead spacing is measured where the leads emerge from...
