LTL-4253 - Through Hole Lamp

LITEON

📥 Download Datasheet

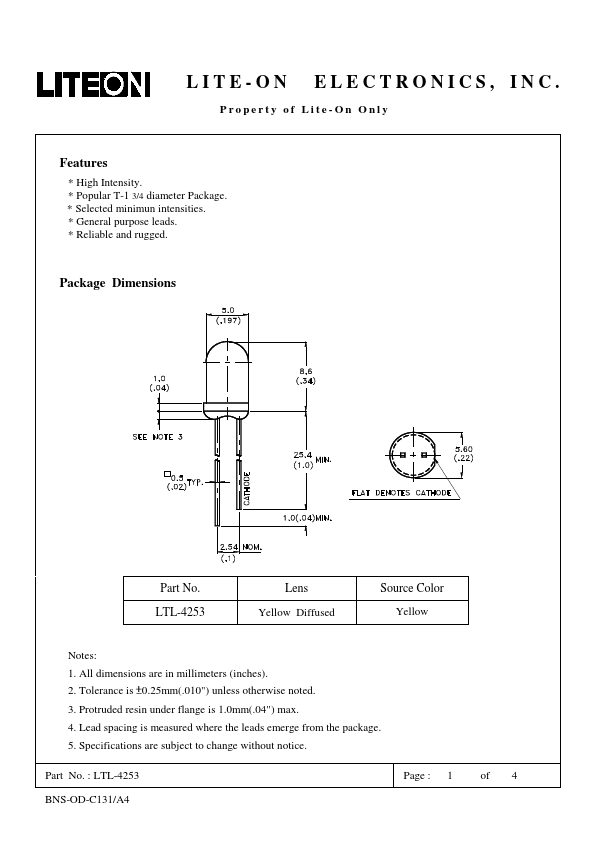

LTL-4253 Datasheet Preview — Preview of LTL-4253 PDF

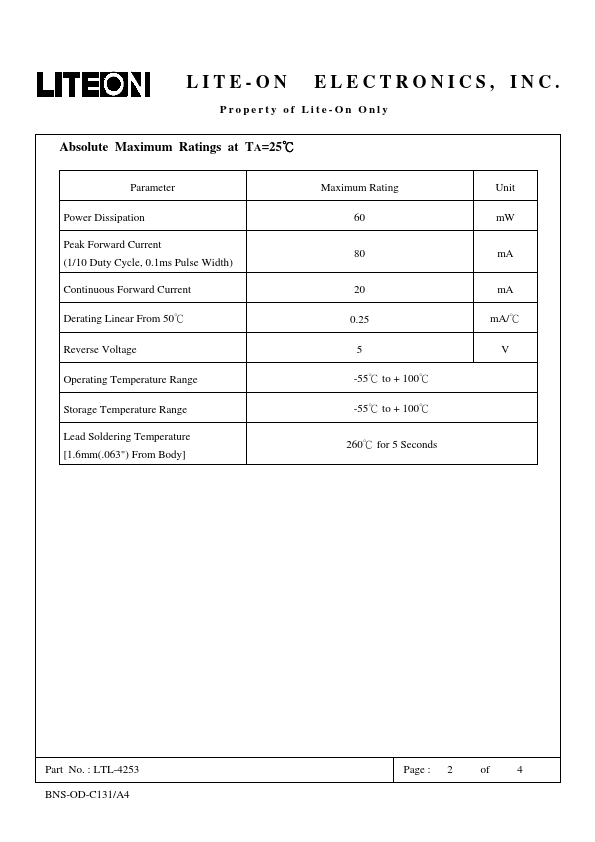

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTL-4253
Manufacturer	LITEON
File Size	380.63 KB
Description	Through Hole Lamp
Datasheet	LTL-4253-LITEON.pdf

LTL-4253 Product details

Features

High Intensity.
Popular T-1 3/4 diameter Package.
Selected minimun intensities.
General purpose leads.
Reliable and rugged. Package Dimensions Part No. LTL-4253 Lens Yellow Diffused Source Color Yellow Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to c.
