LTL-42FEWAD1H106G - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-42FEWAD1H106G Datasheet Preview — Preview of LTL-42FEWAD1H106G PDF

Datasheet Details

Part number	LTL-42FEWAD1H106G
Manufacturer	LITEON
File Size	359.41 KB
Description	Through Hole Lamp
Datasheet	LTL-42FEWAD1H106G-LITEON.pdf

LTL-42FEWAD1H106G Product details

Description

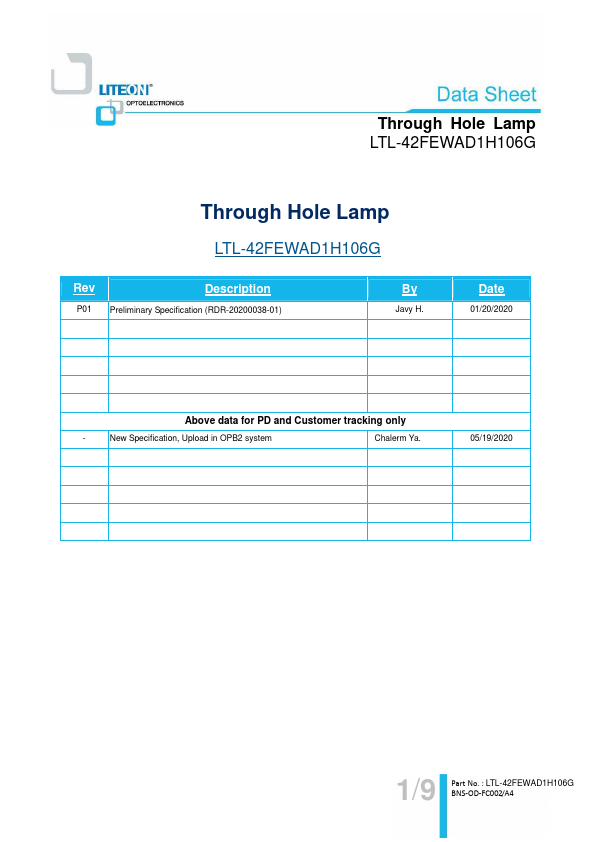

P01 Preliminary Specification (RDR-20200038-01) By Javy H.Date 01/20/2020 Above data for PD and Customer tracking only - New Specification, Upload in OPB2 system Chalerm Ya.05/19/2020 1/9 Part No.: LTL-42FEWAD1H106G BNS-OD-FC002/A4 Through Hole Lamp LTL-42FEWAD1H106G 1. Description CBI (Circuit Board Indicator) is a black plastic right angle Holder (Housing) which mates with Lite-On LED lamps.Lite-On CBI is available in a wide variety of packages, including top-view (Spacer) or ri

Features

Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Solid state light source.
Low power consumption & High efficiency.
Lead free product & RoHS Compliant.
Emitted color is AlInGaP 625nm red with red diffused Lens. 1.2.
